Categories	Capacitors / Film Capacitors

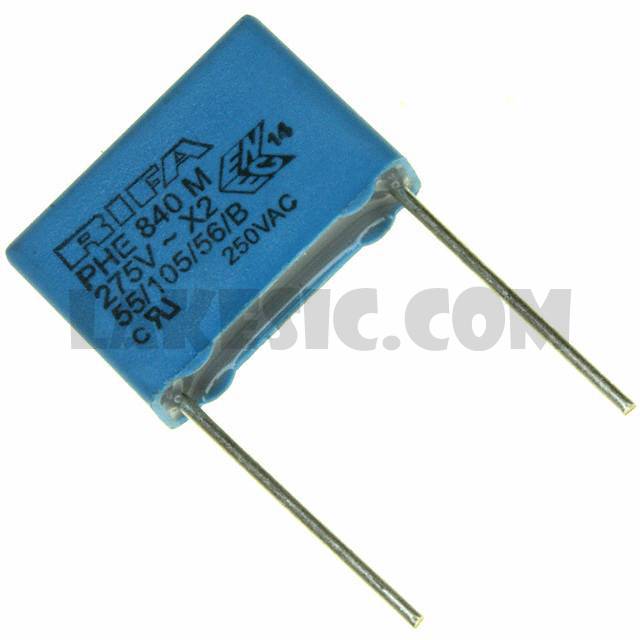

Datasheet	PHE840M
Standard Package	800
Manufacturer	KEMET
Series	PHE840M
Packaging	Bulk
Part Status	Active
Capacitance	0.1µF
Tolerance	±20%
Voltage Rating - AC	275V
Voltage Rating - DC	760V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.709" L x 0.217" W (18.00mm x 5.50mm)
Height - Seated (Max)	0.492" (12.50mm)
Termination	PC Pins
Lead Spacing	0.591" (15.00mm)
Applications	EMI, RFI Suppression
Ratings	X2
Features	-
