Categories	Capacitors / Film Capacitors
Datasheet	PHE840M
Standard Package	400
Manufacturer	KEMET
Series	PHE840M
Packaging	Bulk
Part Status	Active
Capacitance	0.22µF
Tolerance	±20%
Voltage Rating - AC	275V
Voltage Rating - DC	760V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.709" L x 0.295" W (18.00mm x 7.50mm)
Height - Seated (Max)	0.571" (14.50mm)
Termination	PC Pins
Lead Spacing	0.591" (15.00mm)
Applications	EMI, RFI Suppression
Ratings	X2
Features	-

PHE840MD6680KD18R06L2	KEMET, 0.68µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MK5100MK01R17	KEMET, 10000pF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MD6330KD17R06L2	KEMET, 0.33µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MB6100MB05R17	KEMET, 0.1µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MY6680MD15R06L2	KEMET, 0.68µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MK5100KK01R17	KEMET, 10000pF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MB6120MB10R17	KEMET, 0.12µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MK5220MK03R17	KEMET, 0.022µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MK5330MK03R17	KEMET, 0.033µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MA5220MA01R17	KEMET, 0.022µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MD6470KD15R06L2	KEMET, 0.47µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MB6470MB16R17	KEMET, 0.47µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View

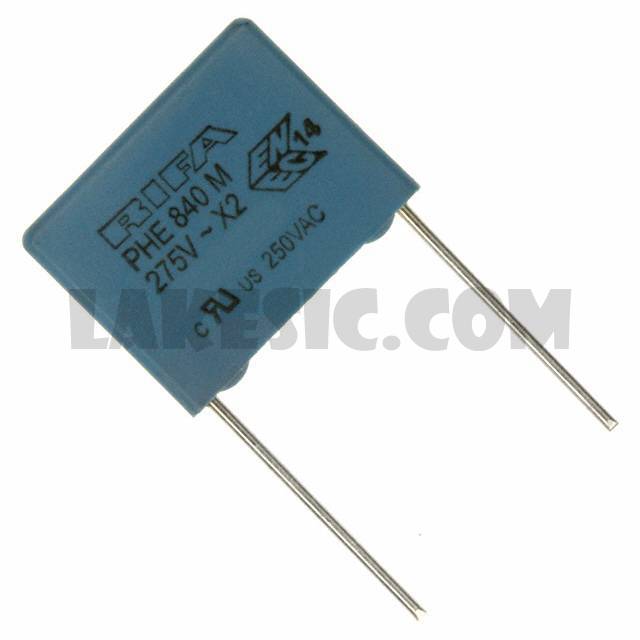

PHE840MX6220MB06R17

Part NumberPHE840MX6220MB06R17
