Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PLF Series
Standard Package	500
Manufacturer	Nichicon
Series	PLF
Packaging	Tape & Box (TB)
Part Status	Active
Type	Polymer
Capacitance	150µF
Tolerance	±20%
Voltage - Rated	20V
ESR (Equivalent Series Resistance)	20mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	4.32A @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

PLF0G102MDO1TD	Nichicon, 1000µF 4V Aluminum Polymer Capacitor Radial, Can 6mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E152MDO1TD	Nichicon, 1500µF 2.5V Aluminum Polymer Capacitor Radial, Can 8mOhm 2000 Hrs @ 105°C, PLF	View
PLF1E470MDO2	Nichicon, 47µF 25V Aluminum Polymer Capacitor Radial, Can 30mOhm 2000 Hrs @ 105°C, PLF	View
PLF1D680MCL2TD	Nichicon, 68µF 20V Aluminum Polymer Capacitor Radial, Can 40mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E102MDO1TD	Nichicon, 1000µF 2.5V Aluminum Polymer Capacitor Radial, Can 6mOhm 2000 Hrs @ 105°C, PLF	View
PLF1D470MCL2TD	Nichicon, 47µF 20V Aluminum Polymer Capacitor Radial, Can 45mOhm 2000 Hrs @ 105°C, PLF	View
PLF0J681MDO1TD	Nichicon, 680µF 6.3V Aluminum Polymer Capacitor Radial, Can 6mOhm 2000 Hrs @ 105°C, PLF	View
PLF1C181MDO1TD	Nichicon, 180µF 16V Aluminum Polymer Capacitor Radial, Can 9mOhm 2000 Hrs @ 105°C, PLF	View
PLF1A471MDO1TD	Nichicon, 470µF 10V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E152MDO6TD	Nichicon, 1500µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E821MDO1TD	Nichicon, 820µF 2.5V Aluminum Polymer Capacitor Radial, Can 6mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E102MDO1TD	Nichicon, 1000µF 2.5V Aluminum Polymer Capacitor Radial, Can 6mOhm 2000 Hrs @ 105°C, PLF	View

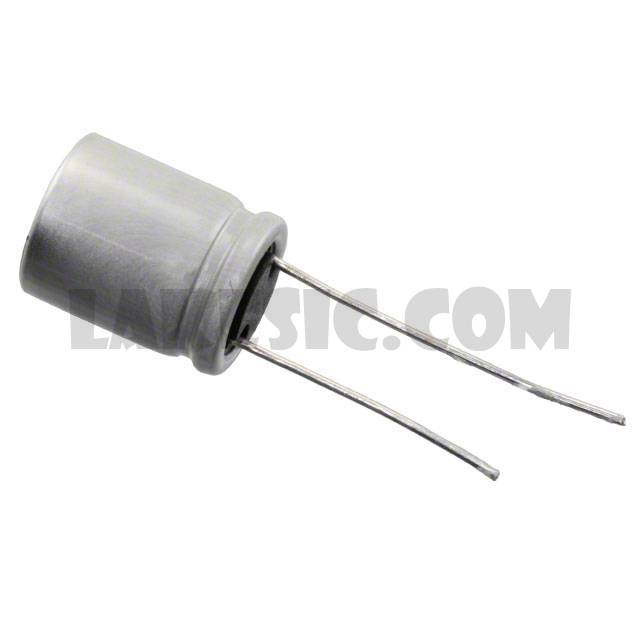

PLF1D151MDO2TD

Part NumberPLF1D151MDO2TD
