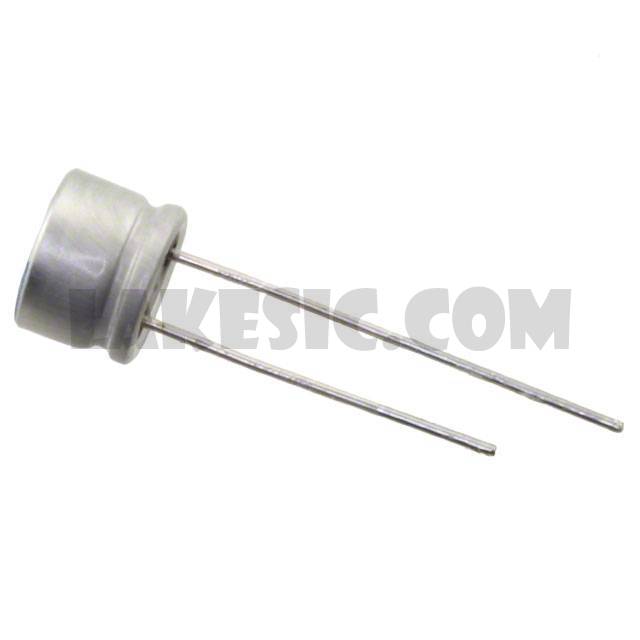

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PLF Series
Standard Package	1
Manufacturer	Nichicon
Series	PLF
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	20V
ESR (Equivalent Series Resistance)	45mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	2A @ 100kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.276" (7.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

PLF1A471MDO1TD	Nichicon, 470µF 10V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF0G681MDO1	Nichicon, 680µF 4V Aluminum Polymer Capacitor Radial, Can 6mOhm 2000 Hrs @ 105°C, PLF	View
PLF1E560MDO2	Nichicon, 56µF 25V Aluminum Polymer Capacitor Radial, Can 28mOhm 2000 Hrs @ 105°C, PLF	View
PLF1E560MDO2TD	Nichicon, 56µF 25V Aluminum Polymer Capacitor Radial, Can 28mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E561MCO8TD	Nichicon, 560µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF0J221MDL4TD	Nichicon, 220µF 6.3V Aluminum Polymer Capacitor Radial, Can 20mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E152MDO6TD	Nichicon, 1500µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF1C271MDO1	Nichicon, 270µF 16V Aluminum Polymer Capacitor Radial, Can 9mOhm 2000 Hrs @ 105°C, PLF	View
PLF1A561MDO1TD	Nichicon, 560µF 10V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF1C271MDO1TD	Nichicon, 270µF 16V Aluminum Polymer Capacitor Radial, Can 9mOhm 2000 Hrs @ 105°C, PLF	View
PLF1D101MDO2	Nichicon, 100µF 20V Aluminum Polymer Capacitor Radial, Can 22mOhm 2000 Hrs @ 105°C, PLF	View
PLF1A101MDL4TD	Nichicon, 100µF 10V Aluminum Polymer Capacitor Radial, Can 25mOhm 2000 Hrs @ 105°C, PLF	View

PLF1D470MCL2TD

Part NumberPLF1D470MCL2TD
