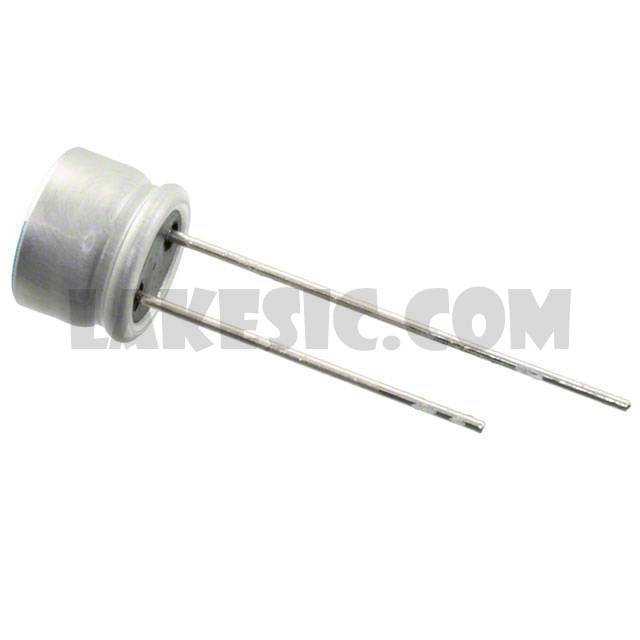

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PLF Series
Standard Package	200
Manufacturer	Nichicon
Series	PLF
Packaging	Bulk
Part Status	Active
Type	Polymer
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	50mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	1.8A @ 100kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.276" (7.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

PLF0E331MCO8TD	Nichicon, 330µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF1D101MDO2TD	Nichicon, 100µF 20V Aluminum Polymer Capacitor Radial, Can 22mOhm 2000 Hrs @ 105°C, PLF	View
PLF1D121MCL2TD	Nichicon, 120µF 20V Aluminum Polymer Capacitor Radial, Can 35mOhm 2000 Hrs @ 105°C, PLF	View
PLF1D680MCL2TD	Nichicon, 68µF 20V Aluminum Polymer Capacitor Radial, Can 40mOhm 2000 Hrs @ 105°C, PLF	View
PLF1E100MCL7TP	Nichicon, 10µF 25V Aluminum Polymer Capacitor Radial, Can 65mOhm 2000 Hrs @ 105°C, PLF	View
PLF1E100MCL2TP	Nichicon, 10µF 25V Aluminum Polymer Capacitor Radial, Can 60mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E391MDL4TD	Nichicon, 390µF 2.5V Aluminum Polymer Capacitor Radial, Can 20mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E102MDO1TD	Nichicon, 1000µF 2.5V Aluminum Polymer Capacitor Radial, Can 6mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E821MCO6TD	Nichicon, 820µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF0G271MDL4TD	Nichicon, 270µF 4V Aluminum Polymer Capacitor Radial, Can 20mOhm 2000 Hrs @ 105°C, PLF	View
PLF1C101MDL4TD	Nichicon, 100µF 16V Aluminum Polymer Capacitor Radial, Can 24mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E561MCO8TD	Nichicon, 560µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View

PLF1E220MCL7

Part NumberPLF1E220MCL7
