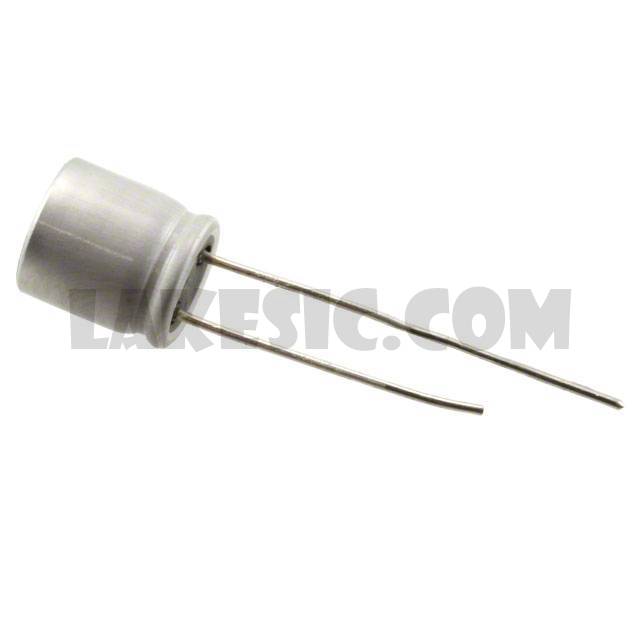

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PLG Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	PLG
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	11mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	5.1A @ 100kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.354" (9.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

PLG1C471MDO1TD	Nichicon, 470µF 16V Aluminum Polymer Capacitor Radial, Can 11mOhm 2000 Hrs @ 105°C, PLG	View
PLG1A561MCO1TD	Nichicon, 560µF 10V Aluminum Polymer Capacitor Radial, Can 11mOhm 2000 Hrs @ 105°C, PLG	View
PLG0J122MDO1TD	Nichicon, 1200µF 6.3V Aluminum Polymer Capacitor Radial, Can 9mOhm 2000 Hrs @ 105°C, PLG	View
PLG1C471MDO1TD	Nichicon, 470µF 16V Aluminum Polymer Capacitor Radial, Can 11mOhm 2000 Hrs @ 105°C, PLG	View
PLG0G182MDO1	Nichicon, 1800µF 4V Aluminum Polymer Capacitor Radial, Can 9mOhm 2000 Hrs @ 105°C, PLG	View
PLG1C471MDO1	Nichicon, 470µF 16V Aluminum Polymer Capacitor Radial, Can 11mOhm 2000 Hrs @ 105°C, PLG	View
PLG1A821MDO1	Nichicon, 820µF 10V Aluminum Polymer Capacitor Radial, Can 10mOhm 2000 Hrs @ 105°C, PLG	View
PLG0G272MDO1TD	Nichicon, 2700µF 4V Aluminum Polymer Capacitor Radial, Can 8mOhm 2000 Hrs @ 105°C, PLG	View
PLG1A122MDO1TD	Nichicon, 1200µF 10V Aluminum Polymer Capacitor Radial, Can 9mOhm 2000 Hrs @ 105°C, PLG	View
PLG1A821MDO1TD	Nichicon, 820µF 10V Aluminum Polymer Capacitor Radial, Can 10mOhm 2000 Hrs @ 105°C, PLG	View
PLG0J182MDO1	Nichicon, 1800µF 6.3V Aluminum Polymer Capacitor Radial, Can 8mOhm 2000 Hrs @ 105°C, PLG	View
PLG0E392MDO1TD	Nichicon, 3900µF 2.5V Aluminum Polymer Capacitor Radial, Can 8mOhm 2000 Hrs @ 105°C, PLG	View

PLG1A561MCO1TD

Part NumberPLG1A561MCO1TD
