PMCM6501UNEZ

PMCM6501UNEZ

Part NumberPMCM6501UNEZ

ManufacturerNexperia USA Inc.

DescriptionMOSFET N-CHANNEL 20V 6WLCSP

DatasheetPMCM6501UNEZ

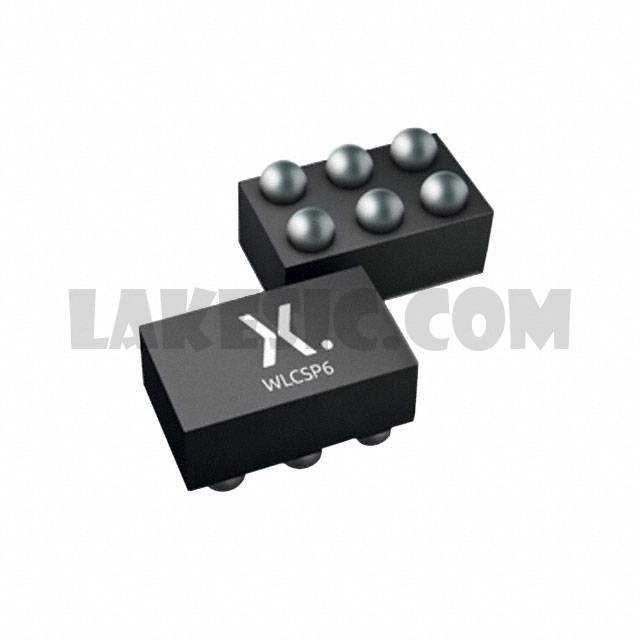

Package / Case6-XFBGA, WLCSP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 400mW Surface Mount 6-WLCSP (1.48x.98)

To learn about the specification of PMCM6501UNEZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PMCM6501UNEZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PMCM6501UNEZ.
We are offering PMCM6501UNEZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PMCM6501UNEZ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	PMCM6501UNEZ
Standard Package	4500
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	-
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	6.2nC @ 4.5V
Vgs (Max)	-
FET Feature	-
Power Dissipation (Max)	400mW
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WLCSP (1.48x.98)
Package / Case	6-XFBGA, WLCSP
