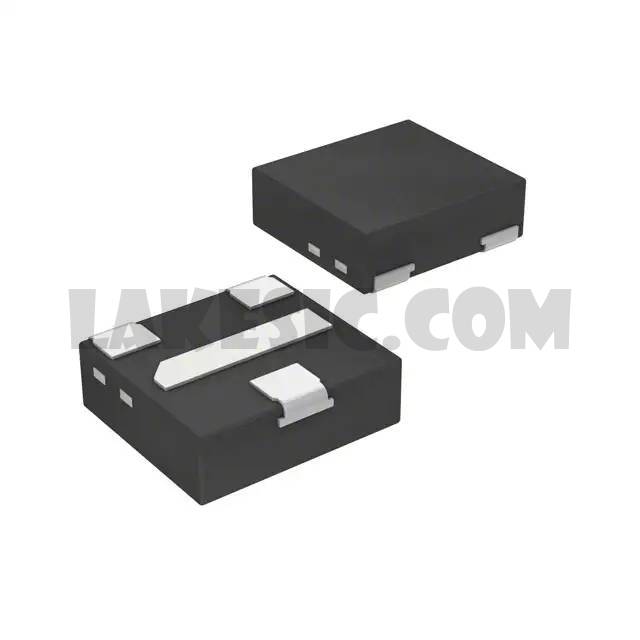

PMXB120EPEZ

PMXB120EPEZ

Part NumberPMXB120EPEZ

ManufacturerNexperia USA Inc.

DescriptionMOSFET P-CH 30V 2.4A 3DFN

DatasheetPMXB120EPE

Package / Case3-XDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 30V 2.4A (Ta) 400mW (Ta), 8.3W (Tc) Surface Mount DFN1010D-3

To learn about the specification of PMXB120EPEZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PMXB120EPEZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PMXB120EPEZ.
We are offering PMXB120EPEZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PMXB120EPEZ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	PMXB120EPE
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	120mOhm @ 2.4A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	11nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	309pF @ 15V
FET Feature	-
Power Dissipation (Max)	400mW (Ta), 8.3W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN1010D-3
Package / Case	3-XDFN Exposed Pad
