PMZB600UNEYL

PMZB600UNEYL

Part NumberPMZB600UNEYL

ManufacturerNexperia USA Inc.

DescriptionMOSFET N-CH 20V XQFN3

DatasheetPMZB600UNE

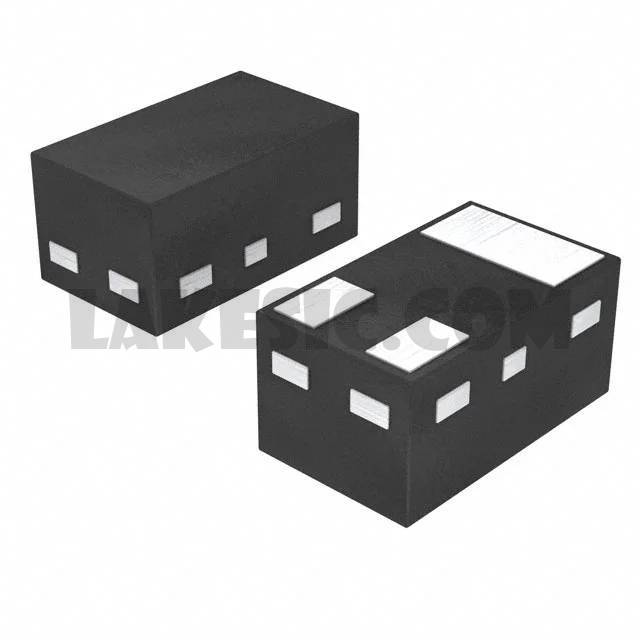

Package / Case3-XFDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 600mA (Ta) 360mW (Ta), 2.7W (Tc) Surface Mount DFN1006B-3

To learn about the specification of PMZB600UNEYL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PMZB600UNEYL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PMZB600UNEYL.
We are offering PMZB600UNEYL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PMZB600UNEYL - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	PMZB600UNE
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	600mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.2V, 4.5V
Rds On (Max) @ Id, Vgs	620mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id	950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.7nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	21.3pF @ 10V
FET Feature	-
Power Dissipation (Max)	360mW (Ta), 2.7W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN1006B-3
Package / Case	3-XFDFN
