Categories	Resistors / Through Hole Resistors
Datasheet	PNP Series
Standard Package	2000
Manufacturer	Yageo
Series	PNP
Packaging	Tape & Reel (TR)
Part Status	Active
Resistance	560 mOhms
Tolerance	±5%
Power (Watts)	3W
Composition	Wirewound
Features	Flame Retardant Coating, Safety
Temperature Coefficient	-
Operating Temperature	-40°C ~ 200°C
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.181" Dia x 0.453" L (4.60mm x 11.50mm)
Height - Seated (Max)	-
Number of Terminations	2
Failure Rate	-

PNP300JR-73-39R	Yageo, 39 Ohms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Safety Wirewound, PNP	View
PNP300JR-73-0R18	Yageo, 180 mOhms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Safety Wirewound, PNP	View
PNP300JR-73-0R33	Yageo, 330 mOhms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Safety Wirewound, PNP	View
PNP300JR-73-0R18	Yageo, 180 mOhms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Safety Wirewound, PNP	View
PNP300JR-73-0R56	Yageo, 560 mOhms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Safety Wirewound, PNP	View
PNP300JR-73-15R	Yageo, 15 Ohms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Safety Wirewound, PNP	View
PNP300JR-73-22R	Yageo, 22 Ohms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Safety Wirewound, PNP	View
PNP300JR-73-0R12	Yageo, 120 mOhms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Safety Wirewound, PNP	View
PNP300JR-73-4R7	Yageo, 4.7 Ohms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Safety Wirewound, PNP	View
PNP300JR-73-0R47	Yageo, 470 mOhms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Safety Wirewound, PNP	View
PNP300JR-73-5R6	Yageo, 5.6 Ohms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Safety Wirewound, PNP	View
PNP300JR-73-0R75	Yageo, 750 mOhms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Safety Wirewound, PNP	View

PNP300JR-73-0R56

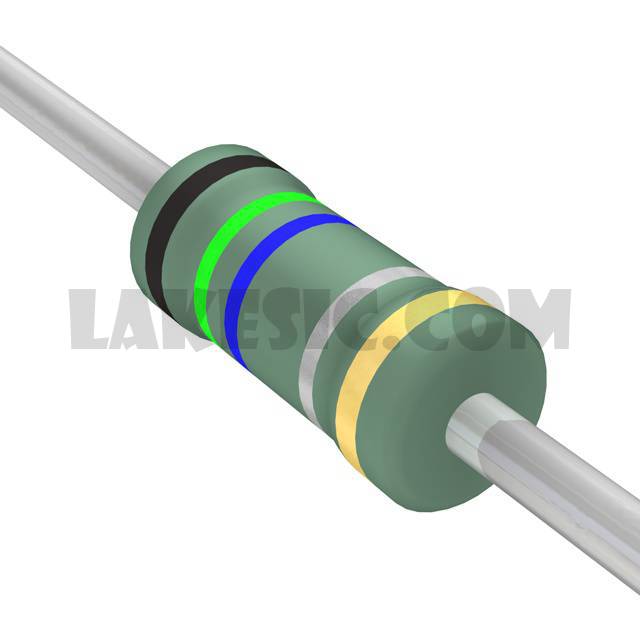

Part NumberPNP300JR-73-0R56
