PSMN4R3-30BL,118

PSMN4R3-30BL,118

Part NumberPSMN4R3-30BL,118

ManufacturerNexperia USA Inc.

DescriptionMOSFET N-CH 30V 100A D2PAK

DatasheetPSMN4R3-30BL

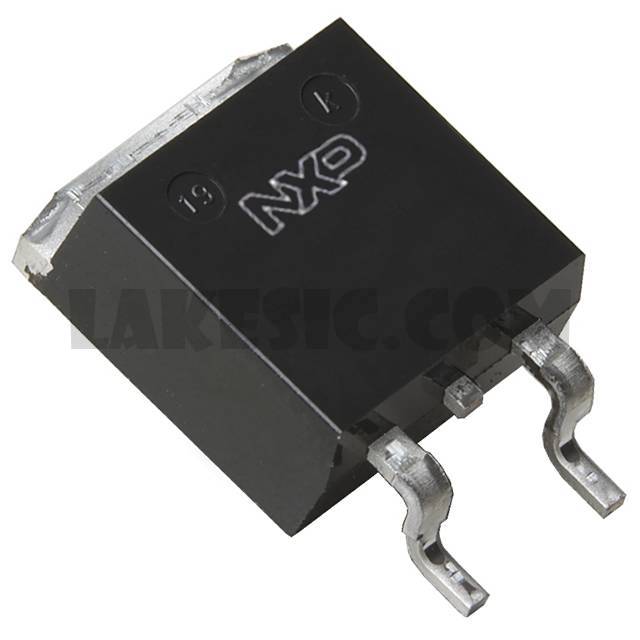

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 100A (Tc) 103W (Tc) Surface Mount D2PAK

To learn about the specification of PSMN4R3-30BL,118, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PSMN4R3-30BL,118 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PSMN4R3-30BL,118.
We are offering PSMN4R3-30BL,118 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PSMN4R3-30BL,118 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	PSMN4R3-30BL
Standard Package	800
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.1mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	41.5nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2400pF @ 15V
FET Feature	-
Power Dissipation (Max)	103W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
