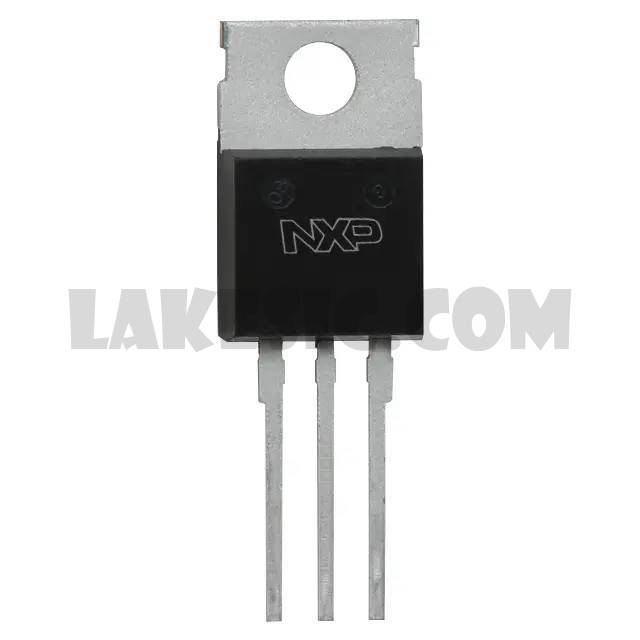

PSMN8R7-80PS,127

PSMN8R7-80PS,127

Part NumberPSMN8R7-80PS,127

ManufacturerNexperia USA Inc.

DescriptionMOSFET N-CH 80V TO220AB

DatasheetPSMN8R7-80PS

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 80V 90A (Tc) 170W (Tc) Through Hole TO-220AB

To learn about the specification of PSMN8R7-80PS,127, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PSMN8R7-80PS,127 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PSMN8R7-80PS,127.
We are offering PSMN8R7-80PS,127 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PSMN8R7-80PS,127 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	PSMN8R7-80PS
Standard Package	50
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80V
Current - Continuous Drain (Id) @ 25°C	90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	8.7mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	52nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3346pF @ 40V
FET Feature	-
Power Dissipation (Max)	170W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB
Package / Case	TO-220-3
