Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TPW1R005PL Datasheet
Standard Package	5000
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSIX-H
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	45V
Current - Continuous Drain (Id) @ 25°C	300A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Vgs(th) (Max) @ Id	2.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	122nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	9600pF @ 22.5V
FET Feature	-
Power Dissipation (Max)	960mW (Ta), 170W (Tc)
Operating Temperature	175°C
Mounting Type	Surface Mount
Supplier Device Package	8-DSOP Advance
Package / Case	8-PowerVDFN

SIHG17N80E-GE3	Vishay Siliconix, N-Channel 800V 15A (Tc) 208W (Tc) Through Hole TO-247AC,	View
SSM3K37FS,LF	Toshiba Semiconductor and Storage, N-Channel 20V 200mA (Ta) 100mW (Ta) Surface Mount SSM, U-MOSIII	View
DMN62D0U-7	Diodes Incorporated, N-Channel 60V 380mA (Ta) 380mW (Ta) Surface Mount SOT-23,	View
STL7N80K5	STMicroelectronics, N-Channel 800V 3.6A (Tc) 42W (Tc) Surface Mount PowerFlat™ (5x6), SuperMESH5™	View
IPL60R125P7AUMA1	Infineon Technologies, N-Channel 650V 27A (Tc) 111W (Tc) Surface Mount PG-VSON-4, CoolMOS™ P7	View
NTR4501NST1G	ON Semiconductor, MOSFET N-CH 20V 3.2A SOT23,	View
RTF025N03TL	Rohm Semiconductor, N-Channel 30V 2.5A (Ta) 800mW (Ta) Surface Mount TUMT3,	View
NTR4003NT1G	ON Semiconductor, N-Channel 30V 500mA (Ta) 690mW (Ta) Surface Mount SOT-23-3 (TO-236),	View
ZXMN2A01E6TA	Diodes Incorporated, N-Channel 20V 2.5A (Ta) 1.1W (Ta) Surface Mount SOT-23-6,	View
IXFA4N85X	IXYS, N-Channel 850V 3.5A (Tc) 150W (Tc) Surface Mount TO-263 (IXFA), HiPerFET™	View
AO3160E	Alpha & Omega Semiconductor Inc., N-Channel 600V 40mA (Ta) 1.39W (Ta) Surface Mount SOT-23A-3,	View
IPP60R280CFD7XKSA1	Infineon Technologies, N-Channel 650V 9A (Tc) 52W (Tc) Through Hole PG-TO220-3, CoolMOS™ CFD7	View

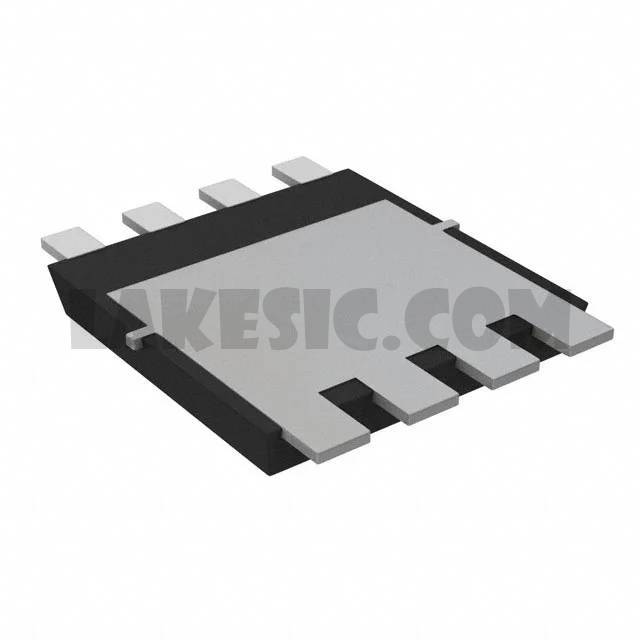

TPW1R005PL,L1Q
