R6020PNJFRATL

R6020PNJFRATL

Part NumberR6020PNJFRATL

ManufacturerRohm Semiconductor

DescriptionR6020PNJFRA IS THE HIGH RELIABIL

DatasheetR6020PNJ

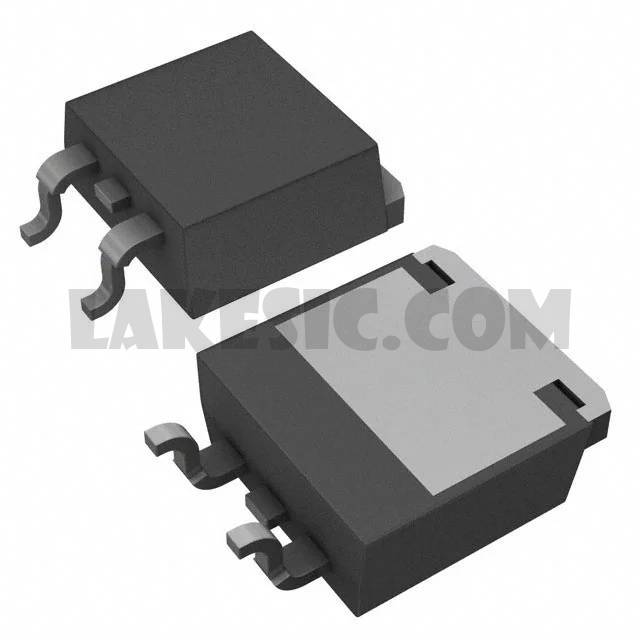

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 20A (Tc) 304W (Tc) Surface Mount LPTS

To learn about the specification of R6020PNJFRATL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add R6020PNJFRATL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of R6020PNJFRATL.
We are offering R6020PNJFRATL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

R6020PNJFRATL - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	R6020PNJ
Standard Package	1
Manufacturer	Rohm Semiconductor
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	250mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	4.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	65nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2040pF @ 25V
FET Feature	-
Power Dissipation (Max)	304W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	LPTS
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
