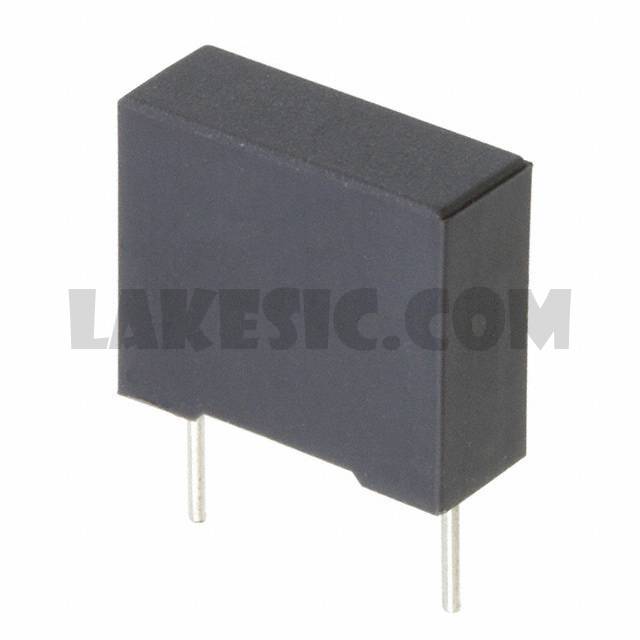

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	800
Manufacturer	KEMET
Series	R76
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	10000pF
Tolerance	±5%
Voltage Rating - AC	400V
Voltage Rating - DC	630V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.512" L x 0.197" W (13.00mm x 5.00mm)
Height - Seated (Max)	0.433" (11.00mm)
Termination	PC Pins
Lead Spacing	0.394" (10.00mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-

R76TN31004040J	KEMET, 0.1µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76MD2100SE40J	KEMET, 10000pF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76MI24704030J	KEMET, 0.047µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76UI01004040J	KEMET, 100pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76TW34704030J	KEMET, 0.47µF Film Capacitor 650V 1500V (1.5kV) Polypropylene (PP), Metallized Radial, R76	View
R76QR34704030J	KEMET, 0.47µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76MI31004030J	KEMET, 0.1µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76QF11504000K	KEMET, 1500pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76PN3100SE30J	KEMET, 0.1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76QN24704030J	KEMET, 0.047µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76QF14704030J	KEMET, 4700pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76TN24704040J	KEMET, 0.047µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View

R76PF2100DQ30J

Part NumberR76PF2100DQ30J
