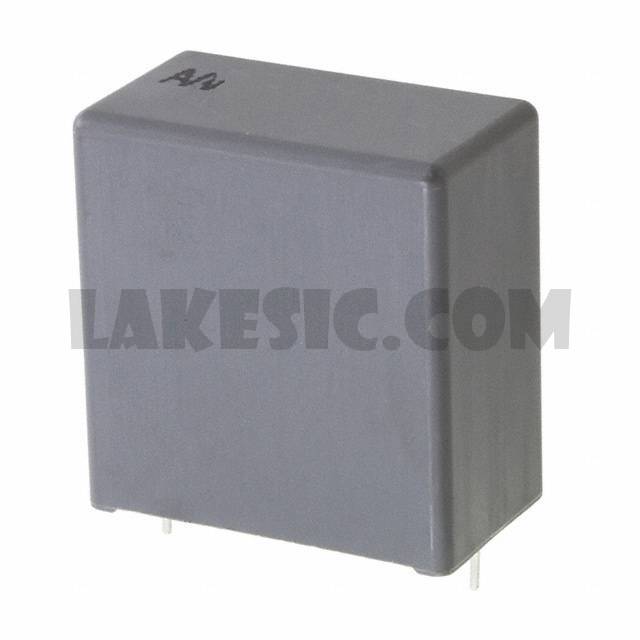

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	256
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	0.22µF
Tolerance	±10%
Voltage Rating - AC	650V
Voltage Rating - DC	1600V (1.6kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.260" L x 0.709" W (32.00mm x 18.00mm)
Height - Seated (Max)	1.299" (33.00mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	High Frequency, Switching; High Pulse, DV/DT
Ratings	-
Features	-

R76TR34704030J	KEMET, 0.47µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76MI24704030J	KEMET, 0.047µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76UR26804030J	KEMET, 0.068µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76MR42204030J	KEMET, 2.2µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76TW32204030J	KEMET, 0.22µF Film Capacitor 650V 1500V (1.5kV) Polypropylene (PP), Metallized Radial, R76	View
R76UR24704030J	KEMET, 0.047µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76UI01004040J	KEMET, 100pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76QD0470SE00K	KEMET, 470pF Film Capacitor 400V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76QF14704030J	KEMET, 4700pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76MI31004030J	KEMET, 0.1µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76UN22204040J	KEMET, 0.022µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76QR32204030J	KEMET, 0.22µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View

R76TR3220SE30K

Part NumberR76TR3220SE30K
