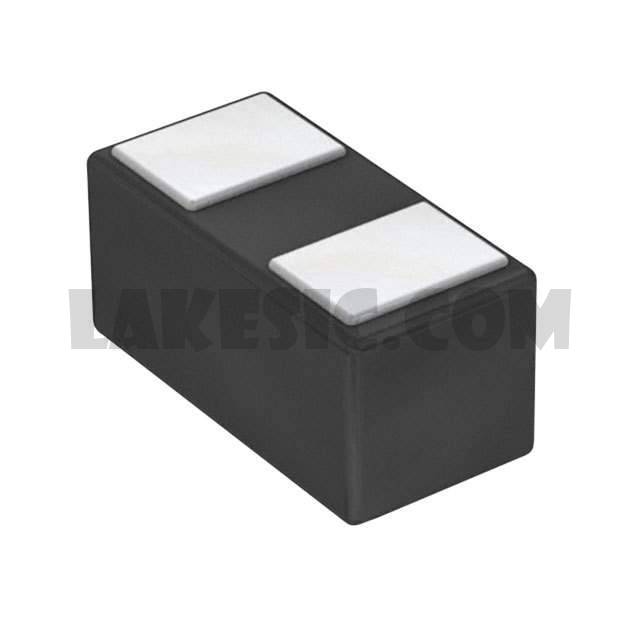

RB522ES-30T15R

RB522ES-30T15R

Part NumberRB522ES-30T15R

ManufacturerRohm Semiconductor

DescriptionSCHOTTKY BARRIER DIODE ULTRA SMA

DatasheetRB522ES-30 Datasheet

Package / Case0201 (0603 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 100mA Surface Mount SMD0603

To learn about the specification of RB522ES-30T15R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RB522ES-30T15R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RB522ES-30T15R.
We are offering RB522ES-30T15R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RB522ES-30T15R - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	RB522ES-30 Datasheet
Standard Package	15000
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	100mA
Voltage - Forward (Vf) (Max) @ If	370mV @ 10mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	7µA @ 10V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	SMD0603
Operating Temperature - Junction	150°C (Max)
