RD7127-36-1M0
RD7127-36-1M0

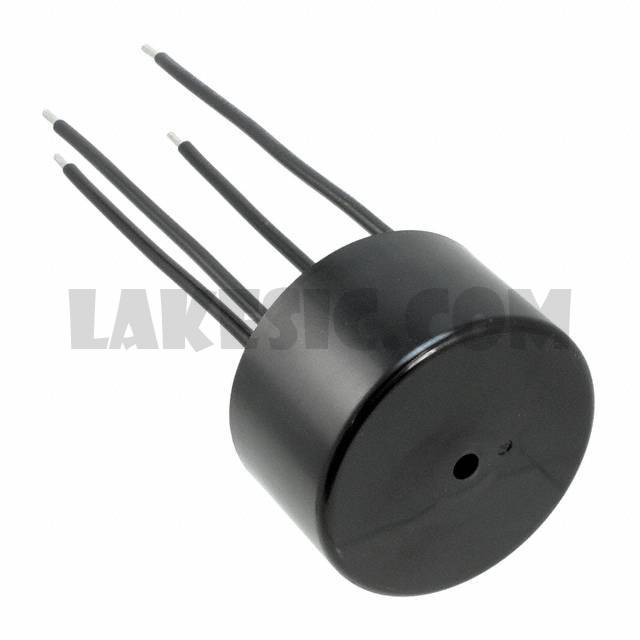

Part Number RD7127-36-1M0 Description COMMON MODE CHOKE 1MH 36A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 1mH @ 1kHz 2 Line Common Mode Choke Through Hole 36A (Typ) DCR 3.3mOhm (Typ)
To learn about the specification of RD7127-36-1M0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RD7127-36-1M0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RD7127-36-1M0.
We are offering RD7127-36-1M0 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RD7127-36-1M0 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet RD Series Standard Package 50 Manufacturer Schaffner EMC Inc. Series RD Packaging Tray Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 1mH @ 1kHz Current Rating (Max) 36A (Typ) DC Resistance (DCR) (Max) 3.3mOhm (Typ) Voltage Rating - DC 850V Voltage Rating - AC 600V Operating Temperature -25°C ~ 110°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 2.756" L x 2.756" W (70.00mm x 70.00mm) Height (Max) 1.594" (40.50mm) Package / Case Horizontal, 4 PC Pin
