RD8137-16-5M0
RD8137-16-5M0

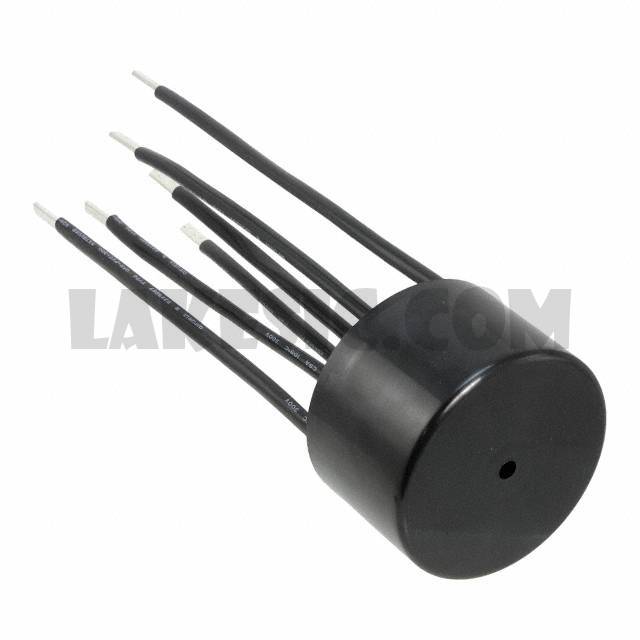

Part Number RD8137-16-5M0 Description COMMON MODE CHOKE 5MH 16A 3LN TH Package / Case -Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description 5mH @ 400Hz 3 Line Common Mode Choke Through Hole 16A (Typ) DCR 11.6mOhm (Typ)
To learn about the specification of RD8137-16-5M0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RD8137-16-5M0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RD8137-16-5M0.
We are offering RD8137-16-5M0 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RD8137-16-5M0 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet RD Series Standard Package 24 Manufacturer Schaffner EMC Inc. Series RD Packaging Tray Part Status Active Filter Type Power Line Number of Lines 3 Inductance @ Frequency 5mH @ 400Hz Current Rating (Max) 16A (Typ) DC Resistance (DCR) (Max) 11.6mOhm (Typ) Voltage Rating - DC 850V Voltage Rating - AC 600V Operating Temperature -25°C ~ 110°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 3.150" L x 3.150" W (80.00mm x 80.00mm) Height (Max) 1.988" (50.50mm) Package / Case -
