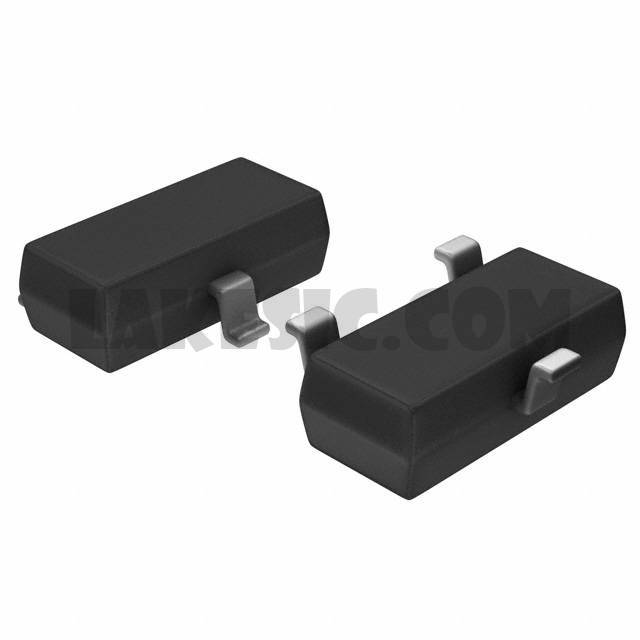

RDR005N25TL

RDR005N25TL

Part NumberRDR005N25TL

ManufacturerRohm Semiconductor

DescriptionMOSFET N-CH 250V 0.5A SC-96-3

DatasheetRDR005N25

Package / CaseSC-96

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 250V 500mA (Ta) 540mW (Ta) Surface Mount TSMT3

To learn about the specification of RDR005N25TL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RDR005N25TL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RDR005N25TL.
We are offering RDR005N25TL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RDR005N25TL - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	RDR005N25
Standard Package	1
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	250V
Current - Continuous Drain (Id) @ 25°C	500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	8.8Ohm @ 250mA, 10V
Vgs(th) (Max) @ Id	3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	3.5nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	70pF @ 25V
FET Feature	-
Power Dissipation (Max)	540mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TSMT3
Package / Case	SC-96
