Categories	Potentiometers, Variable Resistors / Rotary Potentiometers, Rheostats
Datasheet	Rheostats
Standard Package	1
Manufacturer	Ohmite
Series	E
Packaging	Bulk
Part Status	Active
Resistance (Ohms)	125
Tolerance	±10%
Power (Watts)	12.5W
Built in Switch	None
Number of Turns	1
Taper	Linear
Number of Gangs	1
Adjustment Type	User Defined
Temperature Coefficient	-
Rotation	300°
Resistive Material	Wirewound
Termination Style	Solder Lug
Actuator Type	Slotted
Actuator Length	0.625" (15.88mm)
Actuator Diameter	0.125" (3.18mm)
Bushing Thread	1/4-32
Mounting Type	Panel Mount
Size - Body	-

201S42E221JV4E	Johanson Technology Inc., 220pF ±5% 200V Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View
RES125E	Ohmite, 125 Ohm 1 Gang Linear Panel Mount Potentiometer None 1 Turn Wirewound 12.5W Solder Lug,	View
RES750E	Ohmite, 750 Ohm 1 Gang Linear Panel Mount Potentiometer None 1 Turn Wirewound 12.5W Solder Lug,	View
501S42E4R7BV4E	Johanson Technology Inc., 4.7pF ±0.1pF 500V Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View
RES2K5E	Ohmite, 2.5k Ohm 1 Gang Linear Panel Mount Potentiometer None 1 Turn Wirewound 12.5W Solder Lug,	View
RES10RE	Ohmite, 10 Ohm 1 Gang Linear Panel Mount Potentiometer None 1 Turn Wirewound 12.5W Solder Lug,	View
RES175E	Ohmite, 175 Ohm 1 Gang Linear Panel Mount Potentiometer None 1 Turn Wirewound 12.5W Solder Lug,	View
501S42E150JV4E	Johanson Technology Inc., 15pF ±5% 500V Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View
501S42E270JV4E	Johanson Technology Inc., 27pF ±5% 500V Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View
201S42E221JV4E	Johanson Technology Inc., 220pF ±5% 200V Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View
501S42E330JV4E	Johanson Technology Inc., 33pF ±5% 500V Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View
501S42E1R0BV4E	Johanson Technology Inc., 1pF ±0.1pF 500V Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View

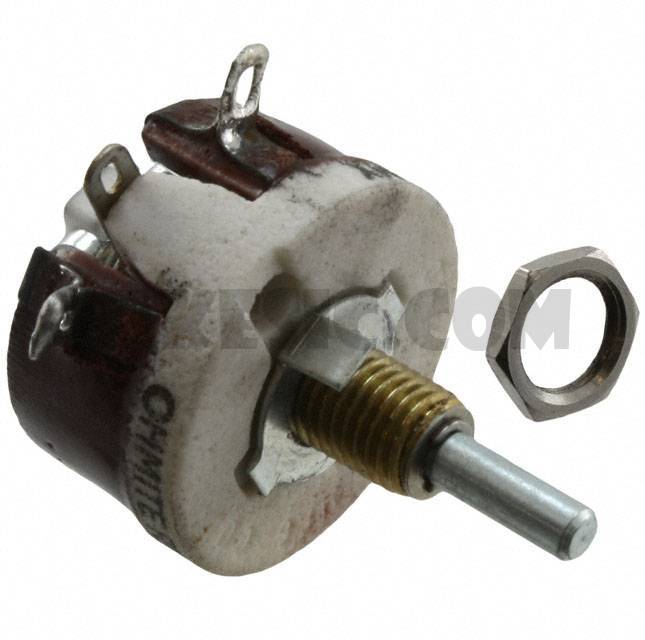

RES125E
