Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	RGS00TS65D
Standard Package	450
Manufacturer	Rohm Semiconductor
Series	Automotive, AEC-Q101
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	650V
Current - Collector (Ic) (Max)	88A
Current - Collector Pulsed (Icm)	150A
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 50A
Power - Max	326W
Switching Energy	1.46mJ (on), 1.29mJ (off)
Input Type	Standard
Gate Charge	58nC
Td (on/off) @ 25°C	36ns/115ns
Test Condition	400V, 50A, 10Ohm, 15V
Reverse Recovery Time (trr)	103ns
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole

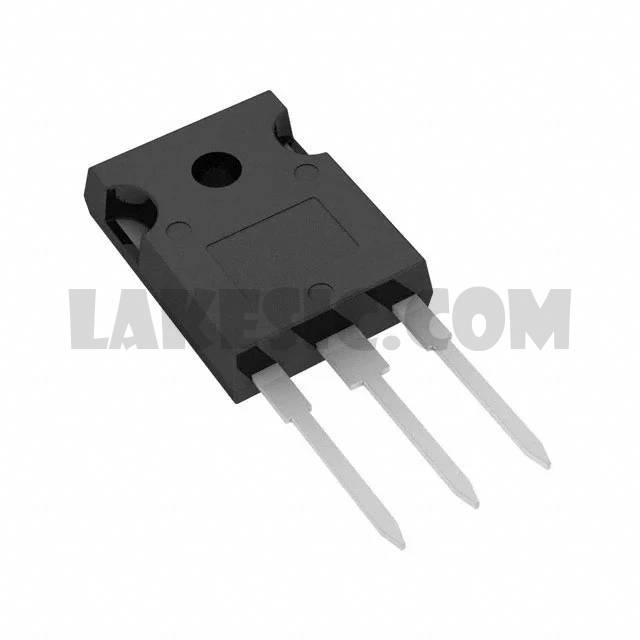

Package / Case	TO-247-3
Supplier Device Package	TO-247N
