FGA30S120P
FGA30S120P

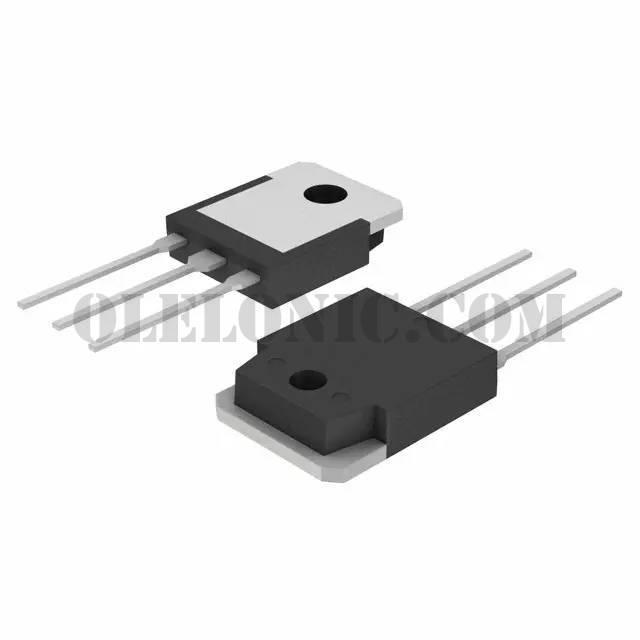

Part Number FGA30S120P Description IGBT 1300V 60A 348W TO3P Package / Case TO-3P-3, SC-65-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Trench Field Stop 1300V 60A 348W Through Hole TO-3PN
To learn about the specification of FGA30S120P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FGA30S120P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FGA30S120P.
We are offering FGA30S120P for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
FGA30S120P - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet FGA30S120P Standard Package 450 Manufacturer ON Semiconductor Series - Packaging Tube Part Status Active IGBT Type Trench Field Stop Voltage - Collector Emitter Breakdown (Max) 1300V Current - Collector (Ic) (Max) 60A Current - Collector Pulsed (Icm) 150A Vce(on) (Max) @ Vge, Ic 2.3V @ 15V, 30A Power - Max 348W Switching Energy - Input Type Standard Gate Charge 78nC Td (on/off) @ 25°C - Test Condition - Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-3P-3, SC-65-3 Supplier Device Package TO-3PN
