RN142-2-02-6M8
RN142-2-02-6M8

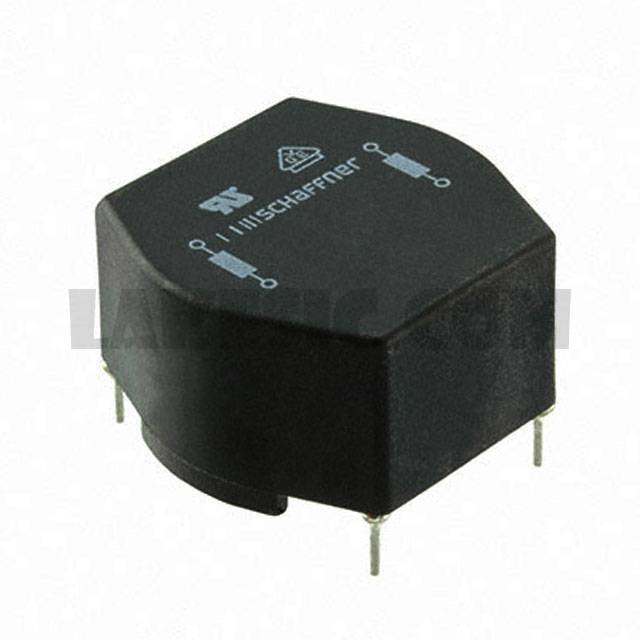

Part Number RN142-2-02-6M8 Description CMC 6.8MH 2A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 6.8mH @ 10kHz 2 Line Common Mode Choke Through Hole 2A DCR 192mOhm (Typ)
To learn about the specification of RN142-2-02-6M8, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RN142-2-02-6M8 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RN142-2-02-6M8.
We are offering RN142-2-02-6M8 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RN142-2-02-6M8 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet RN Series Datasheet Standard Package 100 Manufacturer Schaffner EMC Inc. Series RN Packaging Tray Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 6.8mH @ 10kHz Current Rating (Max) 2A DC Resistance (DCR) (Max) 192mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 300V Operating Temperature -40°C ~ 100°C Ratings - Approvals ENEC, UR, VDE Features - Mounting Type Through Hole Size / Dimension 1.303" L x 1.280" W (33.10mm x 32.50mm) Height (Max) 0.787" (20.00mm) Package / Case Horizontal, 4 PC Pin
