RN212-0.6-02-15M
RN212-0.6-02-15M

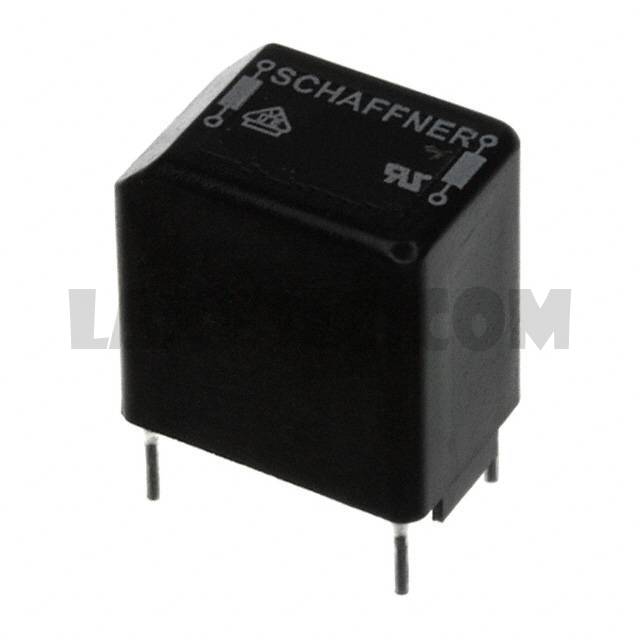

Part Number RN212-0.6-02-15M Description CMC 15MH 600MA 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 15mH @ 10kHz 2 Line Common Mode Choke Through Hole 600mA DCR 490mOhm (Typ)
To learn about the specification of RN212-0.6-02-15M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RN212-0.6-02-15M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RN212-0.6-02-15M.
We are offering RN212-0.6-02-15M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RN212-0.6-02-15M - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet RN Series Datasheet Standard Package 500 Manufacturer Schaffner EMC Inc. Series RN Packaging Tray Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 15mH @ 10kHz Current Rating (Max) 600mA DC Resistance (DCR) (Max) 490mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 300V Operating Temperature -40°C ~ 100°C Ratings - Approvals ENEC, UR, VDE Features - Mounting Type Through Hole Size / Dimension 0.709" L x 0.492" W (18.00mm x 12.50mm) Height (Max) 0.799" (20.30mm) Package / Case Vertical, 4 PC Pin
