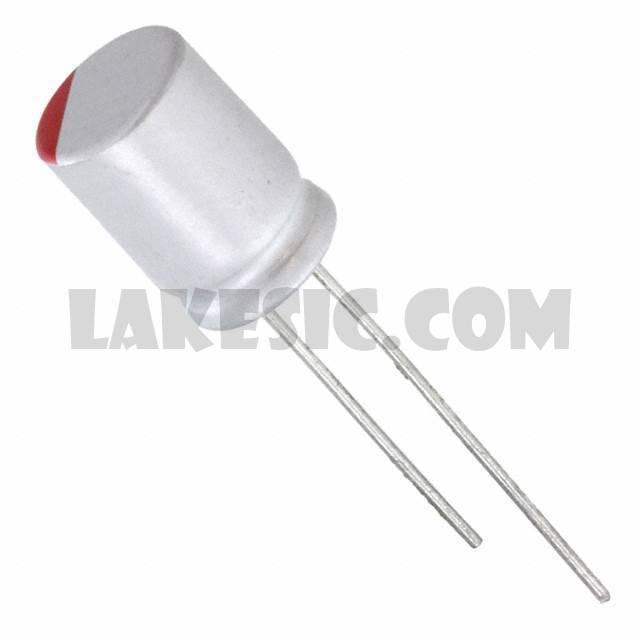

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	RNS Series Datasheet
Standard Package	1000
Manufacturer	Nichicon
Series	FPCAP, RNS
Packaging	Tape & Box (TB)
Part Status	Active
Type	Polymer
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	21mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	390mA @ 120Hz
Ripple Current @ High Frequency	3.9A @ 100kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

RNS0J470MDS1	Nichicon, 47µF 6.3V Aluminum Polymer Capacitor Radial, Can 42mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1A330MDS1JT	Nichicon, 33µF 10V Aluminum Polymer Capacitor Radial, Can 49mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS0J221MDN1KX	Nichicon, 220µF 6.3V Aluminum Polymer Capacitor Radial, Can 21mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1C470MDS1	Nichicon, 47µF 16V Aluminum Polymer Capacitor Radial, Can 42mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS0J681MDN1PH	Nichicon, 680µF 6.3V Aluminum Polymer Capacitor Radial, Can 10mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1D680MDN1KX	Nichicon, 68µF 20V Aluminum Polymer Capacitor Radial, Can 25mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1C101MDN1KX	Nichicon, 100µF 16V Aluminum Polymer Capacitor Radial, Can 21mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1A101MDN1KX	Nichicon, 100µF 10V Aluminum Polymer Capacitor Radial, Can 21mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1E470MDN1	Nichicon, 47µF 25V Aluminum Polymer Capacitor Radial, Can 20mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1C181MDN1KX	Nichicon, 180µF 16V Aluminum Polymer Capacitor Radial, Can 16mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS1E330MDN1PH	Nichicon, 33µF 25V Aluminum Polymer Capacitor Radial, Can 20mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View
RNS0J681MDN1PH	Nichicon, 680µF 6.3V Aluminum Polymer Capacitor Radial, Can 10mOhm 2000 Hrs @ 105°C, FPCAP, RNS	View

RNS1C101MDN1KX

Part NumberRNS1C101MDN1KX
