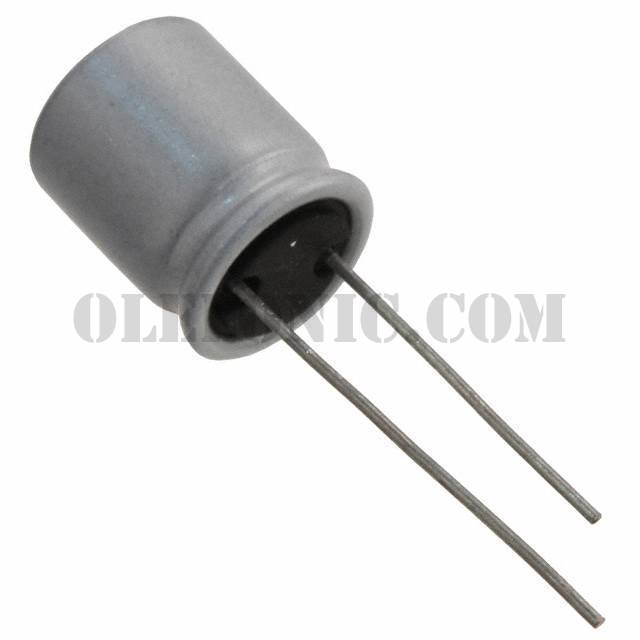

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	RR7 Series
Standard Package	100
Manufacturer	Nichicon
Series	FPCAP, RR7
Packaging	Bulk
Part Status	Active
Type	Polymer
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	7mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	610mA @ 120Hz
Ripple Current @ High Frequency	6.1A @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.551" (14.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

RR70E821MDN1	Nichicon, 820µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RR7	View
RR71A681MDN1	Nichicon, 680µF 10V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RR7	View
RR70J331MDN1	Nichicon, 330µF 6.3V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RR7	View
RR71A681MDN1PH	Nichicon, 680µF 10V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RR7	View
RR71C151MDN1	Nichicon, 150µF 16V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RR7	View
RR71C680MDN1	Nichicon, 68µF 16V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RR7	View
RR70E681MDN1KX	Nichicon, 680µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RR7	View
RR71C331MDN1	Nichicon, 330µF 16V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RR7	View
RR71A221MDN1	Nichicon, 220µF 10V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RR7	View
RR70E681MDN1KX	Nichicon, 680µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RR7	View
RR71C271MDN1PH	Nichicon, 270µF 16V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RR7	View
RR71C271MDN1PH	Nichicon, 270µF 16V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RR7	View

RR71C331MDN1

Part NumberRR71C331MDN1
