RS1G300GNTB

RS1G300GNTB

Part NumberRS1G300GNTB

ManufacturerRohm Semiconductor

DescriptionMOSFET N-CH 40V 30A 8HSOP

DatasheetRS1G300GN

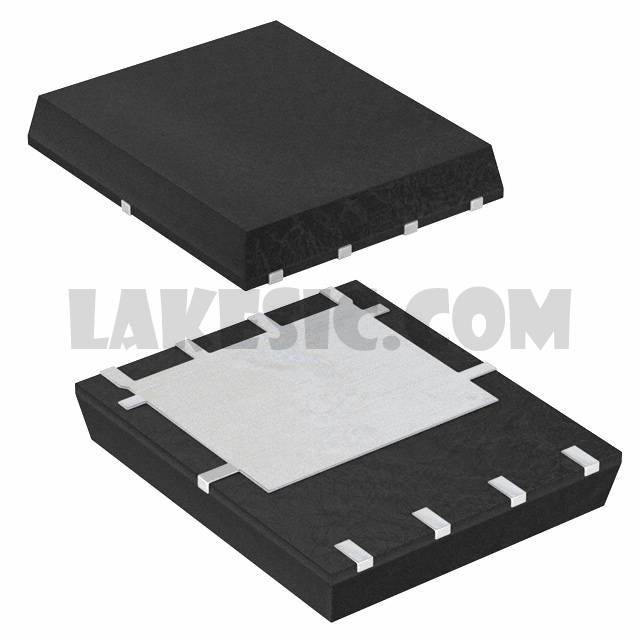

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 30A (Ta) 3W (Ta), 35W (Tc) Surface Mount 8-HSOP

To learn about the specification of RS1G300GNTB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RS1G300GNTB with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RS1G300GNTB.
We are offering RS1G300GNTB for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RS1G300GNTB - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	RS1G300GN
Standard Package	2500
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	30A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.5mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	56.8nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4230pF @ 20V
FET Feature	-
Power Dissipation (Max)	3W (Ta), 35W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-HSOP
Package / Case	8-PowerTDFN
