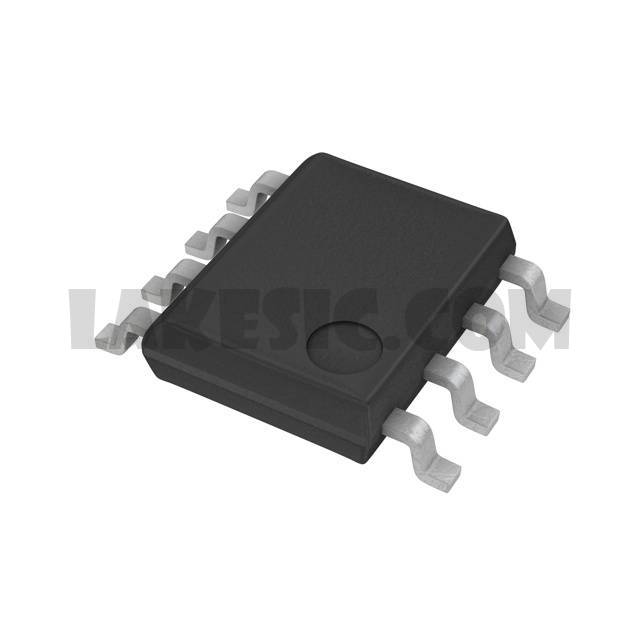

RS3E075ATTB

RS3E075ATTB

Part NumberRS3E075ATTB

ManufacturerRohm Semiconductor

DescriptionMOSFET P-CH 30V 7.5A 8SOP

DatasheetRS3E075AT

Package / Case8-SOIC (0.154", 3.90mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 30V 2W (Ta) Surface Mount 8-SOP

To learn about the specification of RS3E075ATTB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RS3E075ATTB with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RS3E075ATTB.
We are offering RS3E075ATTB for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RS3E075ATTB - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	RS3E075AT
Standard Package	2500
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	23.5mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	25nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1250pF @ 15V
FET Feature	-
Power Dissipation (Max)	2W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOP
Package / Case	8-SOIC (0.154", 3.90mm Width)
