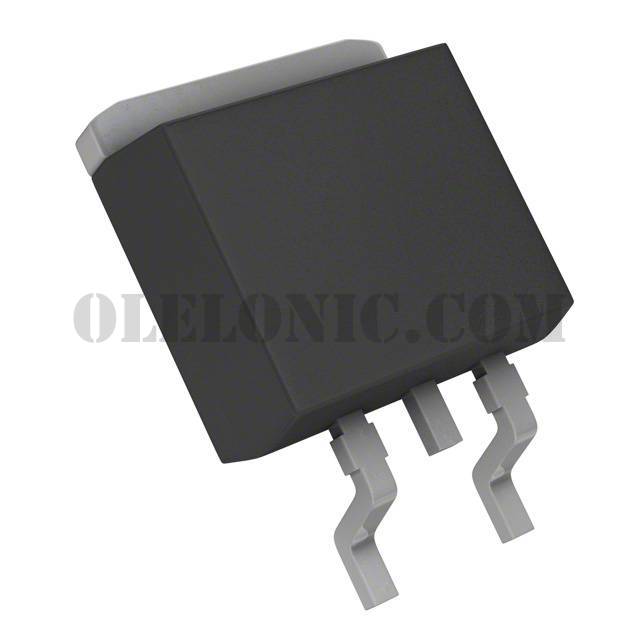

RSD140P06TL

RSD140P06TL

Part NumberRSD140P06TL

ManufacturerRohm Semiconductor

DescriptionMOSFET P-CH 60V 14A CPT3

DatasheetRSD140P06

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 60V 14A (Ta) 20W (Tc) Surface Mount CPT3

To learn about the specification of RSD140P06TL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RSD140P06TL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RSD140P06TL.
We are offering RSD140P06TL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RSD140P06TL - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	RSD140P06
Standard Package	1
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Not For New Designs
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	14A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	84mOhm @ 14A, 10V
Vgs(th) (Max) @ Id	3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	27nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1900pF @ 10V
FET Feature	-
Power Dissipation (Max)	20W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	CPT3
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
