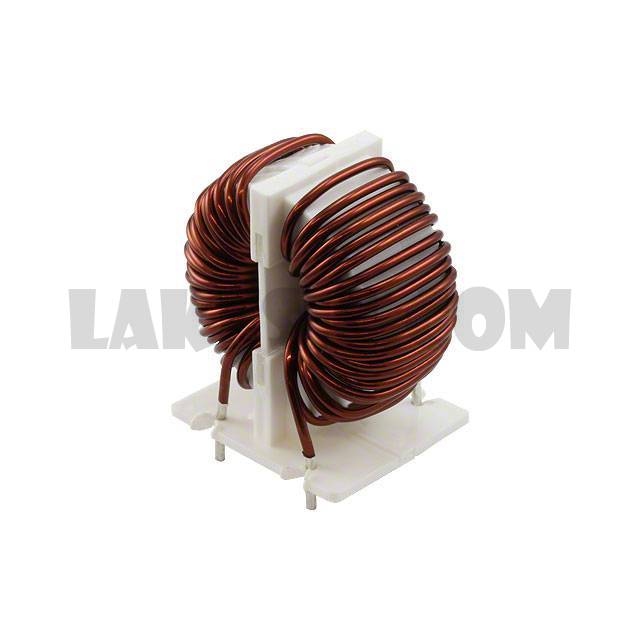

SC-10-20J

SC-10-20J

Part NumberSC-10-20J

ManufacturerKEMET

DescriptionCOMMON MODE CHOKE 2MH 10A 2LN TH

DatasheetSC-J Series

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2mH @ 100kHz 2 Line Common Mode Choke Through Hole 10A DCR 22mOhm

To learn about the specification of SC-10-20J, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SC-10-20J with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SC-10-20J.
We are offering SC-10-20J for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SC-10-20J - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	SC-J Series
Standard Package	160
Manufacturer	KEMET
Series	SC
Packaging	Bulk
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	2mH @ 100kHz
Current Rating (Max)	10A
DC Resistance (DCR) (Max)	22mOhm
Voltage Rating - DC	250V
Voltage Rating - AC	250V
Operating Temperature	-25°C ~ 105°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	1.654" L x 1.142" W (42.00mm x 29.00mm)
Height (Max)	1.732" (44.00mm)
Package / Case	Vertical, 4 PC Pin
