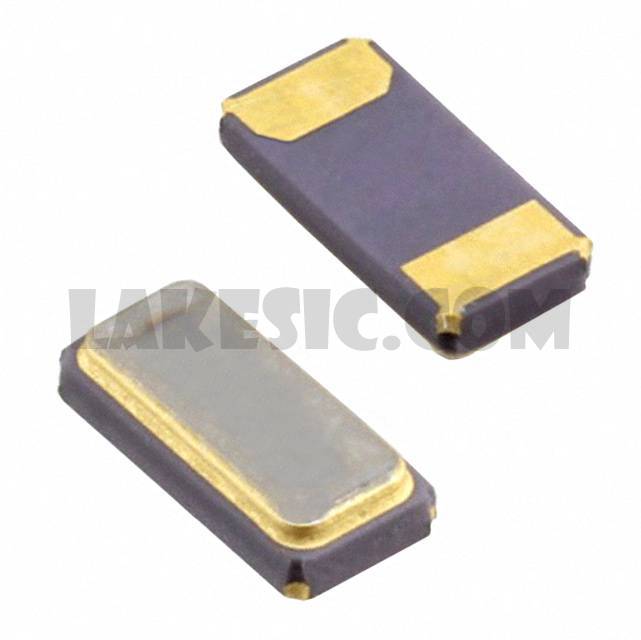

Categories	Crystals, Oscillators, Resonators / Crystals
Datasheet	SC-20S
Standard Package	1
Manufacturer	Seiko Instruments
Series	SCX
Packaging	Cut Tape (CT)
Part Status	Active
Type	kHz Crystal (Tuning Fork)
Frequency	32.768kHz
Frequency Stability	-
Frequency Tolerance	±20ppm
Load Capacitance	12.5pF
ESR (Equivalent Series Resistance)	90 kOhms
Operating Mode	Fundamental
Operating Temperature	-40°C ~ 85°C
Ratings	-
Mounting Type	Surface Mount
Package / Case	2-SMD, No Lead
Size / Dimension	0.081" L x 0.047" W (2.05mm x 1.20mm)
Height - Seated (Max)	0.024" (0.60mm)

SC32S-12.5PF20PPM	Seiko Instruments, 32.768kHz ±20ppm Crystal 12.5pF 70 kOhms 2-SMD, No Lead, SCX	View
SC32S-7PF20PPM	Seiko Instruments, 32.768kHz ±20ppm Crystal 7pF 70 kOhms 2-SMD, No Lead, SCX	View
SC20S-7PF20PPM	Seiko Instruments, 32.768kHz ±20ppm Crystal 7pF 90 kOhms 2-SMD, No Lead, SCX	View
SC20S-12.5PF20PPM	Seiko Instruments, 32.768kHz ±20ppm Crystal 12.5pF 90 kOhms 2-SMD, No Lead, SCX	View
SC16S-7PF20PPM	Seiko Instruments, 32.768kHz ±20ppm Crystal 7pF 90 kOhms 2-SMD, No Lead, SCX	View
SC32S-12.5PF20PPM	Seiko Instruments, 32.768kHz ±20ppm Crystal 12.5pF 70 kOhms 2-SMD, No Lead, SCX	View
SC20S-7PF20PPM	Seiko Instruments, 32.768kHz ±20ppm Crystal 7pF 90 kOhms 2-SMD, No Lead, SCX	View
SC16S-12.5PF20PPM	Seiko Instruments, 32.768kHz ±20ppm Crystal 12.5pF 90 kOhms 2-SMD, No Lead, SCX	View
SC20S-12.5PF20PPM	Seiko Instruments, 32.768kHz ±20ppm Crystal 12.5pF 90 kOhms 2-SMD, No Lead, SCX	View
SC16S-7PF20PPM	Seiko Instruments, 32.768kHz ±20ppm Crystal 7pF 90 kOhms 2-SMD, No Lead, SCX	View
SC16S-12.5PF20PPM	Seiko Instruments, 32.768kHz ±20ppm Crystal 12.5pF 90 kOhms 2-SMD, No Lead, SCX	View
SC32S-7PF20PPM	Seiko Instruments, 32.768kHz ±20ppm Crystal 7pF 70 kOhms 2-SMD, No Lead, SCX	View

SC20S-12.5PF20PPM

Part NumberSC20S-12.5PF20PPM
