Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	SDB101-107
Standard Package	1
Manufacturer	Micro Commercial Co
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	600V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Current - Reverse Leakage @ Vr	10µA @ 600V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	SDB-1
Base Part Number	SDB105

MB4S	ON Semiconductor, Bridge Rectifier Single Phase Standard 400V Surface Mount 4-SOIC,	View
DF04S2	ON Semiconductor, Bridge Rectifier Single Phase Standard 400V Surface Mount 4-SDIP,	View
DB106S-G	Comchip Technology, Bridge Rectifier Single Phase Standard 800V Surface Mount DBS,	View
MB16S-TP	Micro Commercial Co, Bridge Rectifier Single Phase Schottky 60V Surface Mount MBS-1,	View
CBRLDSH2-60 TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Schottky 60V Surface Mount 4-LPDIP,	View
ABF26TR	SMC Diode Solutions, Bridge Rectifier Single Phase Standard 600V Surface Mount ABF,	View
YBS2204G RAG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 400V Surface Mount YBS,	View
DBF1510U-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBF,	View
DBLS102G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 100V Surface Mount DBLS,	View
BAS4002ARPPE6327HTSA1	Infineon Technologies, Bridge Rectifier Single Phase Standard 40V Surface Mount PG-SOT143-4,	View
DBF310-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBF,	View
T483A	Sensata-Crydom, Bridge Rectifier Single Phase Standard 200V Surface Mount Module,	View

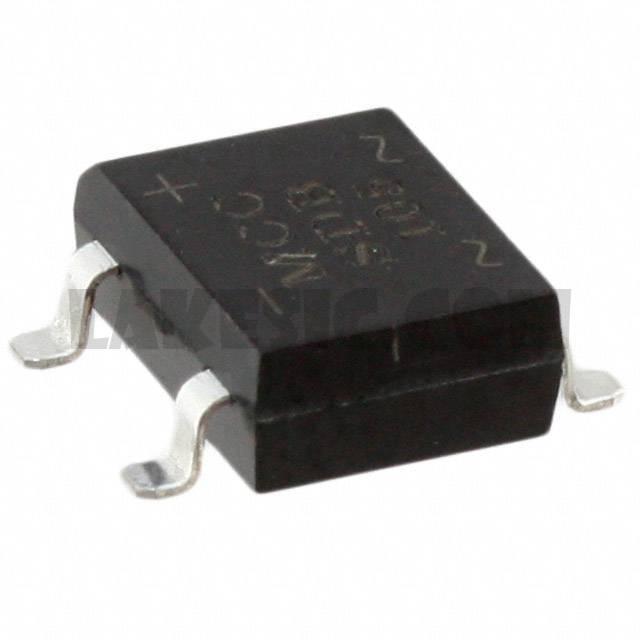

SDB105-TP

Part NumberSDB105-TP
