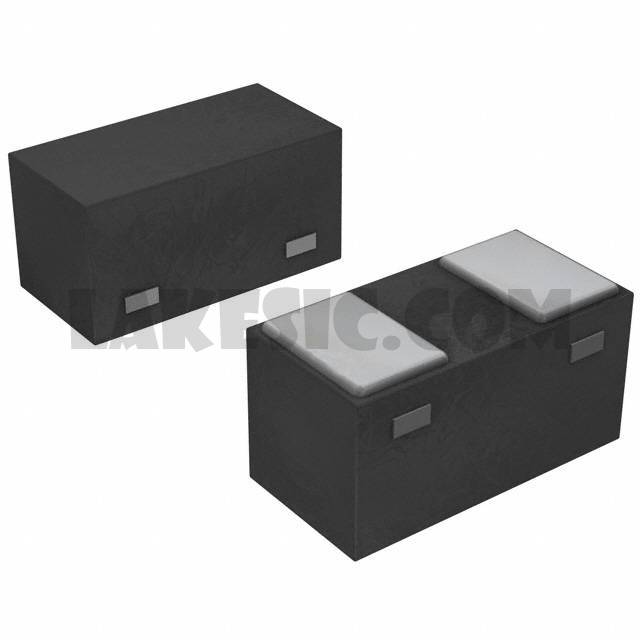

SDM02U30CSP-7

SDM02U30CSP-7

Part NumberSDM02U30CSP-7

ManufacturerDiodes Incorporated

DescriptionDIODE SCHOTTKY X3-WLB0603-2

DatasheetSDM02U30CSP

Package / Case2-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 200mA Surface Mount X3-WLB0603-2

To learn about the specification of SDM02U30CSP-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SDM02U30CSP-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SDM02U30CSP-7.
We are offering SDM02U30CSP-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SDM02U30CSP-7 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SDM02U30CSP
Standard Package	10000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	500mV @ 200mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	50µA @ 30V
Capacitance @ Vr, F	9pF @ 0.5V, 1MHz
Mounting Type	Surface Mount
Package / Case	2-SMD, No Lead
Supplier Device Package	X3-WLB0603-2
Operating Temperature - Junction	-55°C ~ 150°C
