SGS10N60RUFDTU
SGS10N60RUFDTU

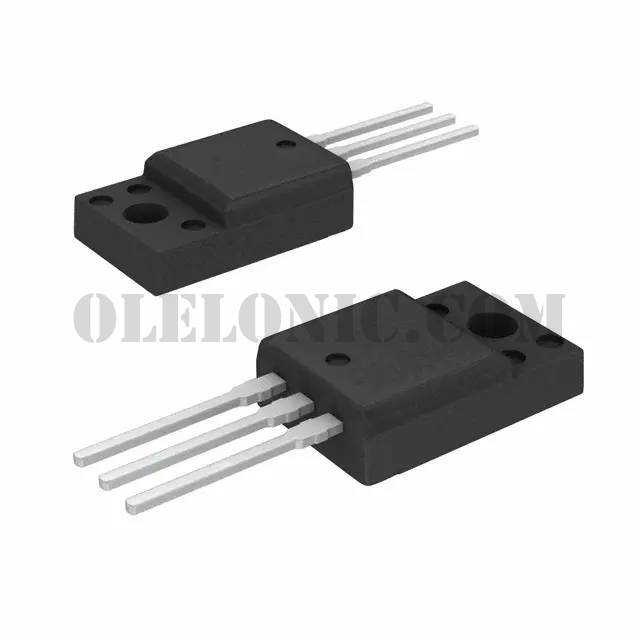

Part Number SGS10N60RUFDTU Description IGBT 600V 16A 55W TO220F Package / Case TO-220-3 Full PackUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 600V 16A 55W Through Hole TO-220F
To learn about the specification of SGS10N60RUFDTU, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SGS10N60RUFDTU with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SGS10N60RUFDTU.
We are offering SGS10N60RUFDTU for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SGS10N60RUFDTU - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet SGS10N60RUFD Standard Package 1000 Manufacturer ON Semiconductor Series - Packaging Tube Part Status Active IGBT Type - Voltage - Collector Emitter Breakdown (Max) 600V Current - Collector (Ic) (Max) 16A Current - Collector Pulsed (Icm) 30A Vce(on) (Max) @ Vge, Ic 2.8V @ 15V, 10A Power - Max 55W Switching Energy 141µJ (on), 215µJ (off) Input Type Standard Gate Charge 30nC Td (on/off) @ 25°C 15ns/36ns Test Condition 300V, 10A, 20Ohm, 15V Reverse Recovery Time (trr) 60ns Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Package / Case TO-220-3 Full Pack Supplier Device Package TO-220F Base Part Number SG*10N60
