SI1317DL-T1-GE3

SI1317DL-T1-GE3

Part NumberSI1317DL-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET P-CH 20V 1.4A SC70

DatasheetSI1317DL-T1-GE3

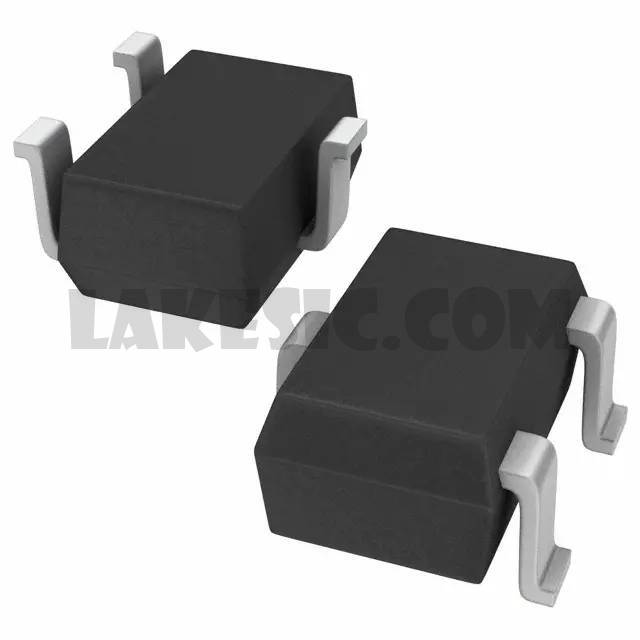

Package / CaseSC-70, SOT-323

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 1.4A (Tc) 500mW (Tc) Surface Mount SOT-323

To learn about the specification of SI1317DL-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SI1317DL-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SI1317DL-T1-GE3.
We are offering SI1317DL-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SI1317DL-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SI1317DL-T1-GE3
Standard Package	3000
Manufacturer	Vishay Siliconix
Series	TrenchFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	1.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	150mOhm @ 1.4A, 4.5V
Vgs(th) (Max) @ Id	800mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.5nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	272pF @ 10V
FET Feature	-
Power Dissipation (Max)	500mW (Tc)
Operating Temperature	-50°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-323
Package / Case	SC-70, SOT-323
