SI7540ADP-T1-GE3

SI7540ADP-T1-GE3

Part NumberSI7540ADP-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET N/P-CH POWERPAK8

DatasheetSI7540ADP

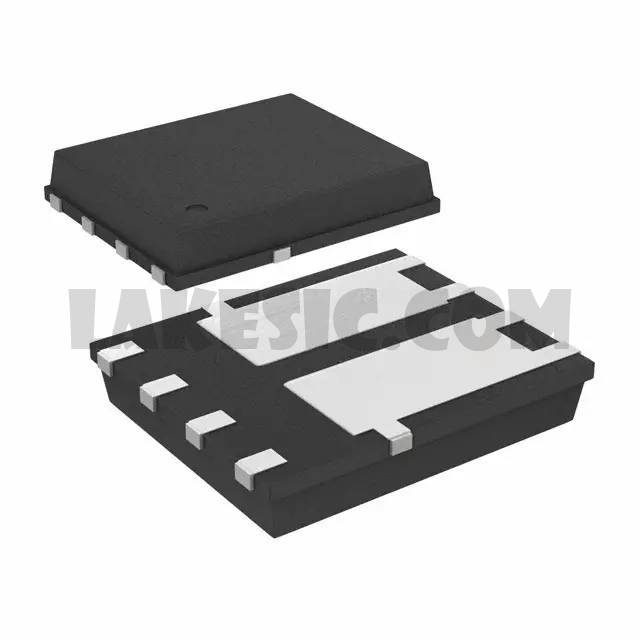

Package / CasePowerPAK® SO-8 Dual

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel 20V 12A, 9A 3.5W Surface Mount PowerPAK® SO-8 Dual

To learn about the specification of SI7540ADP-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SI7540ADP-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SI7540ADP-T1-GE3.
We are offering SI7540ADP-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SI7540ADP-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	SI7540ADP
Standard Package	3000
Manufacturer	Vishay Siliconix
Series	TrenchFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N and P-Channel
FET Feature	-
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	12A, 9A
Rds On (Max) @ Id, Vgs	28mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	48nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1310pF @ 10V
Power - Max	3.5W
Operating Temperature	-55°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	PowerPAK® SO-8 Dual
Supplier Device Package	PowerPAK® SO-8 Dual
