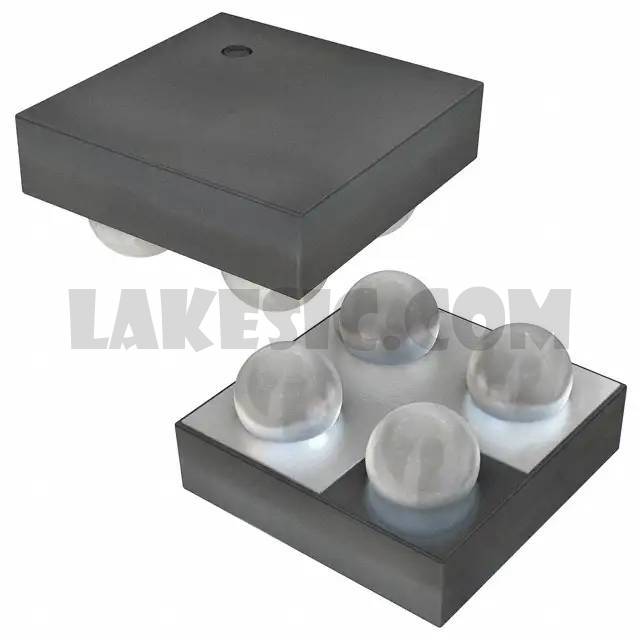

SI8466EDB-T2-E1


SI8466EDB-T2-E1

Part NumberSI8466EDB-T2-E1

Manufacturer

Description

Datasheet

Package / Case4-UFBGA, WLCSP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SI8466EDB-T2-E1 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package3000
ManufacturerVishay Siliconix
SeriesTrenchFET®
PackagingTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)8V
Current - Continuous Drain (Id) @ 25°C-
Drive Voltage (Max Rds On, Min Rds On)1.2V, 4.5V
Rds On (Max) @ Id, Vgs43mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id700mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs13nC @ 4.5V
Vgs (Max)±5V
Input Capacitance (Ciss) (Max) @ Vds710pF @ 4V
FET Feature-
Power Dissipation (Max)780mW (Ta), 1.8W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package4-Microfoot
Package / Case4-UFBGA, WLCSP
