SI8800EDB-T2-E1

SI8800EDB-T2-E1

Part NumberSI8800EDB-T2-E1

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 20V MICROFOOT

DatasheetSI8800EDB

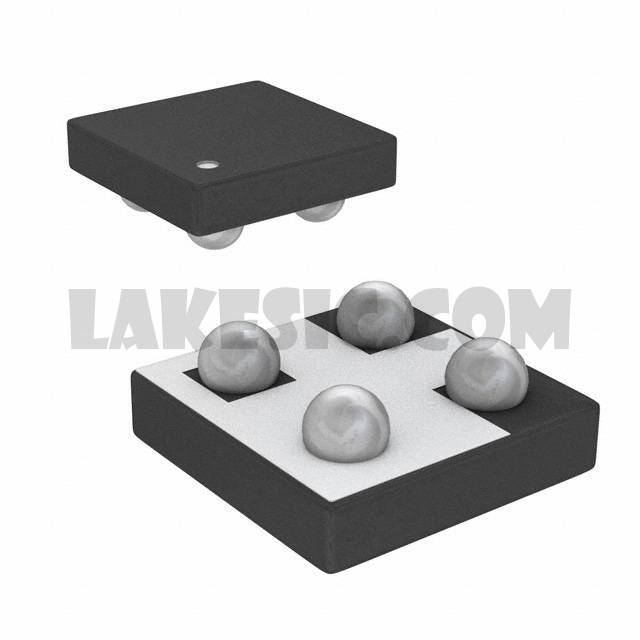

Package / Case4-XFBGA, CSPBGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 500mW (Ta) Surface Mount 4-Microfoot

To learn about the specification of SI8800EDB-T2-E1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SI8800EDB-T2-E1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SI8800EDB-T2-E1.
We are offering SI8800EDB-T2-E1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SI8800EDB-T2-E1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SI8800EDB
Standard Package	1
Manufacturer	Vishay Siliconix
Series	TrenchFET®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	-
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	80mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8.3nC @ 8V
Vgs (Max)	±8V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-Microfoot
Package / Case	4-XFBGA, CSPBGA
