SIA533EDJ-T1-GE3

SIA533EDJ-T1-GE3

Part NumberSIA533EDJ-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET N/P-CH 12V 4.5A SC70-6

DatasheetSIA533EDJ

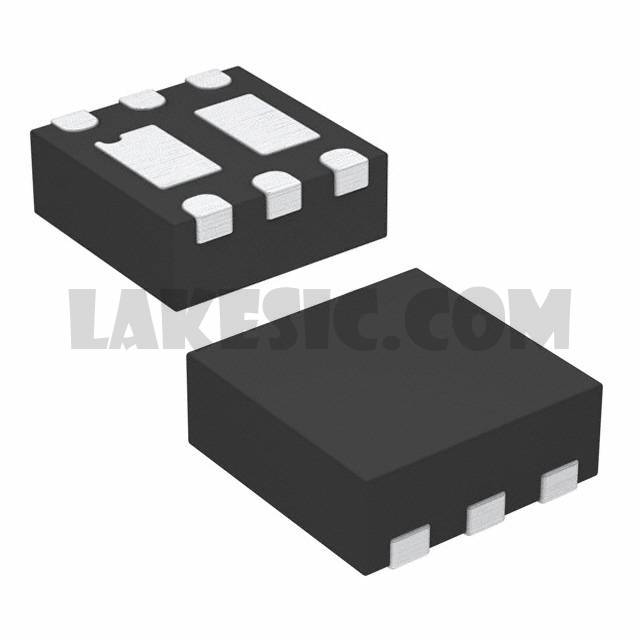

Package / CasePowerPAK® SC-70-6 Dual

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel 12V 4.5A 7.8W Surface Mount PowerPAK® SC-70-6 Dual

To learn about the specification of SIA533EDJ-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SIA533EDJ-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SIA533EDJ-T1-GE3.
We are offering SIA533EDJ-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SIA533EDJ-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	SIA533EDJ
Standard Package	1
Manufacturer	Vishay Siliconix
Series	TrenchFET®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	4.5A
Rds On (Max) @ Id, Vgs	34mOhm @ 4.6A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	420pF @ 6V
Power - Max	7.8W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® SC-70-6 Dual
Supplier Device Package	PowerPAK® SC-70-6 Dual
Base Part Number	SIA533
