SIE812DF-T1-GE3

SIE812DF-T1-GE3

Part NumberSIE812DF-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 40V 60A POLARPAK

DatasheetSIE812DF

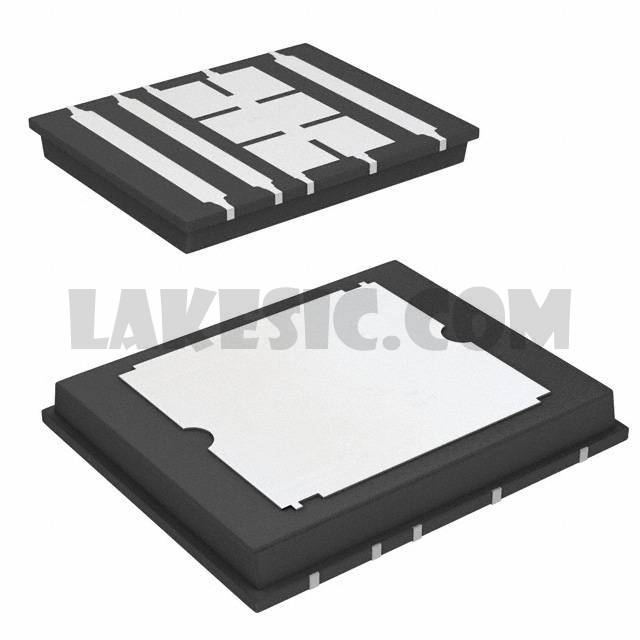

Package / Case10-PolarPAK® (L)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 60A (Tc) 5.2W (Ta), 125W (Tc) Surface Mount 10-PolarPAK® (L)

To learn about the specification of SIE812DF-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SIE812DF-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SIE812DF-T1-GE3.
We are offering SIE812DF-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SIE812DF-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SIE812DF
Standard Package	3000
Manufacturer	Vishay Siliconix
Series	TrenchFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.6mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	170nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8300pF @ 20V
FET Feature	-
Power Dissipation (Max)	5.2W (Ta), 125W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	10-PolarPAK® (L)
Package / Case	10-PolarPAK® (L)
