SIHA25N60EFL-E3


SIHA25N60EFL-E3

Part NumberSIHA25N60EFL-E3

Manufacturer

Description

Datasheet

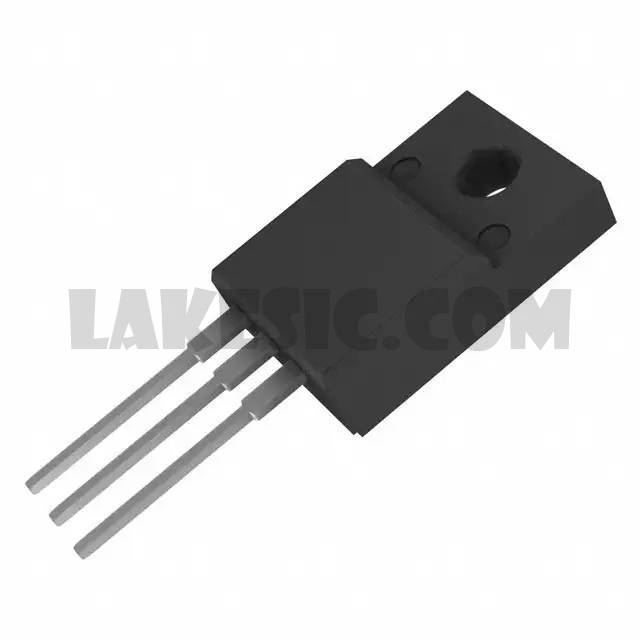

Package / CaseTO-220-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SIHA25N60EFL-E3 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package1000
ManufacturerVishay Siliconix
SeriesE
PackagingTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600V
Current - Continuous Drain (Id) @ 25°C25A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs146mOhm @ 12.5A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs75nC @ 10V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds2274pF @ 100V
FET Feature-
Power Dissipation (Max)39W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220 Full Pack
Package / CaseTO-220-3 Full Pack
