SIR165DP-T1-GE3

SIR165DP-T1-GE3

Part NumberSIR165DP-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET P-CHAN 30V POWERPAK SO-8

DatasheetSIR165DP Datasheet

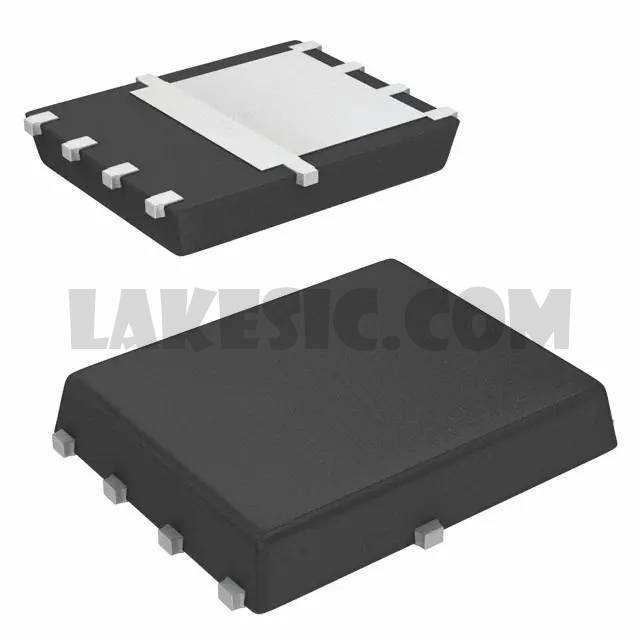

Package / CasePowerPAK® SO-8

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 30V 60A (Tc) 69.4W (Tc) Surface Mount PowerPAK® SO-8

To learn about the specification of SIR165DP-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SIR165DP-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SIR165DP-T1-GE3.
We are offering SIR165DP-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SIR165DP-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SIR165DP Datasheet
Standard Package	3000
Manufacturer	Vishay Siliconix
Series	TrenchFET® Gen III
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.6mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	138nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4930pF @ 15V
FET Feature	-
Power Dissipation (Max)	69.4W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
