SIS932EDN-T1-GE3

Part NumberSIS932EDN-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH DL 30V PWRPAK 1212-8

DatasheetSIS932EDN

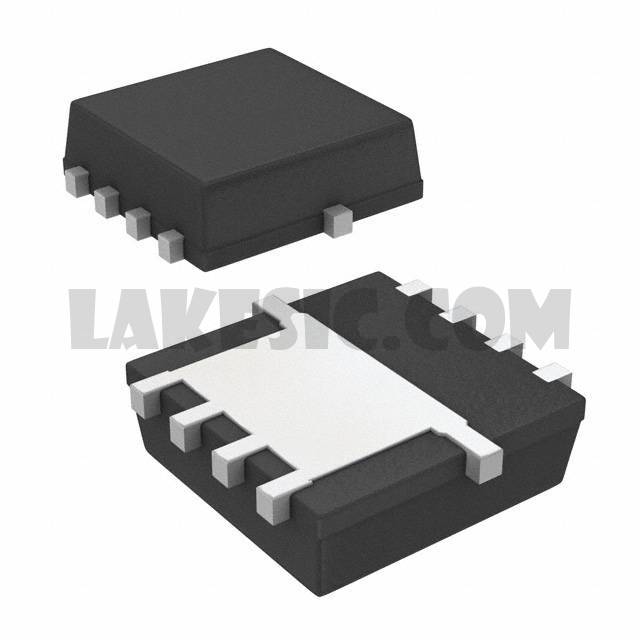

Package / CasePowerPAK® 1212-8 Dual

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 6A (Tc) 2.6W (Ta), 23W (Tc) Surface Mount PowerPAK® 1212-8 Dual

To learn about the specification of SIS932EDN-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SIS932EDN-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SIS932EDN-T1-GE3.
We are offering SIS932EDN-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SIS932EDN-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	SIS932EDN
Standard Package	1
Manufacturer	Vishay Siliconix
Series	TrenchFET®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	6A (Tc)
Rds On (Max) @ Id, Vgs	22mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id	1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1000pF @ 15V
Power - Max	2.6W (Ta), 23W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® 1212-8 Dual
Supplier Device Package	PowerPAK® 1212-8 Dual
