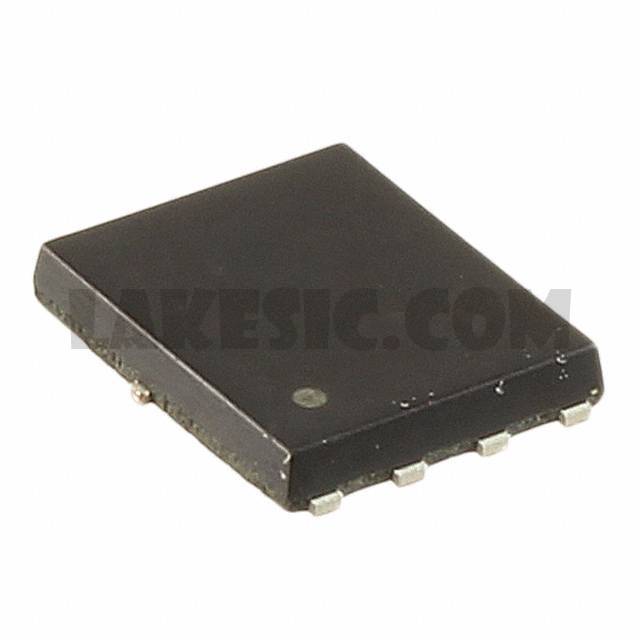

SK8603180L

SK8603180L

Part NumberSK8603180L

ManufacturerPanasonic Electronic Components

DescriptionMOSFET N-CH 30V 15A 8HSO

DatasheetSK8603180L Datasheet

Package / Case8-PowerSMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 15A (Ta), 39A (Tc) 2.4W (Ta), 19W (Tc) Surface Mount HSO8-F4-B

To learn about the specification of SK8603180L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SK8603180L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SK8603180L.
We are offering SK8603180L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SK8603180L - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SK8603180L Datasheet
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	15A (Ta), 39A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	7.1mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	3V @ 1.45mA
Gate Charge (Qg) (Max) @ Vgs	9.2nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1680pF @ 10V
FET Feature	-
Power Dissipation (Max)	2.4W (Ta), 19W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	HSO8-F4-B
Package / Case	8-PowerSMD, Flat Leads
