SPA07N60C3XKSA1

SPA07N60C3XKSA1

Part NumberSPA07N60C3XKSA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 650V 7.3A TO-220

DatasheetSPP/SPI/SPA07N60C3

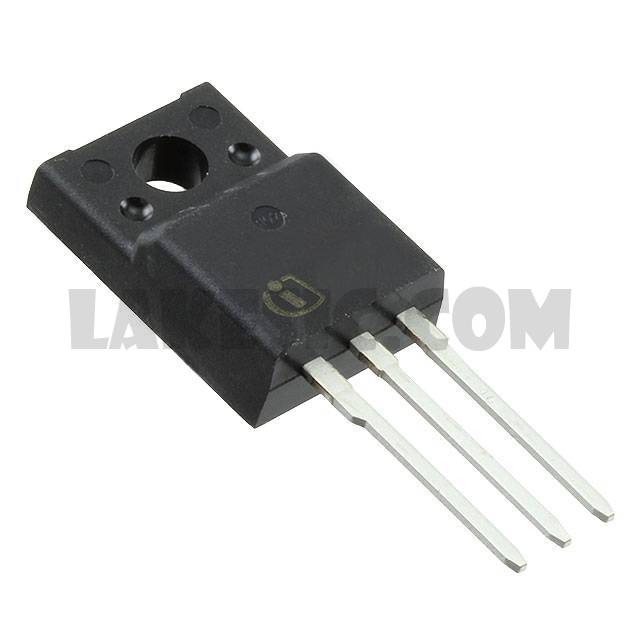

Package / CaseTO-220-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 650V 7.3A (Tc) 32W (Tc) Through Hole PG-TO220-FP

To learn about the specification of SPA07N60C3XKSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SPA07N60C3XKSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SPA07N60C3XKSA1.
We are offering SPA07N60C3XKSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SPA07N60C3XKSA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SPP/SPI/SPA07N60C3
Standard Package	500
Manufacturer	Infineon Technologies
Series	CoolMOS™
Packaging	Tube
Part Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650V
Current - Continuous Drain (Id) @ 25°C	7.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	600mOhm @ 4.6A, 10V
Vgs(th) (Max) @ Id	3.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	27nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	790pF @ 25V
FET Feature	-
Power Dissipation (Max)	32W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO220-FP
Package / Case	TO-220-3 Full Pack
