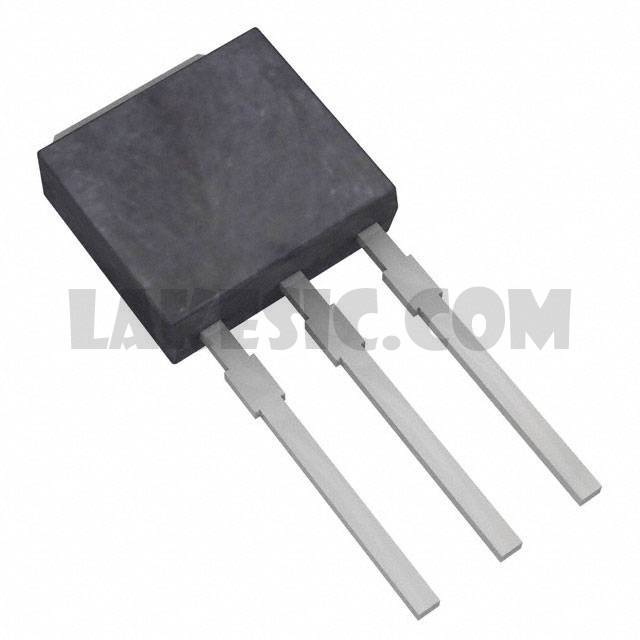

SPU02N60C3BKMA1


SPU02N60C3BKMA1

Part NumberSPU02N60C3BKMA1

Manufacturer

Description

Datasheet

Package / CaseTO-251-3 Short Leads, IPak, TO-251AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SPU02N60C3BKMA1 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package1500
ManufacturerInfineon Technologies
SeriesCoolMOS™
PackagingTube
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)650V
Current - Continuous Drain (Id) @ 25°C1.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs3Ohm @ 1.1A, 10V
Vgs(th) (Max) @ Id3.9V @ 80µA
Gate Charge (Qg) (Max) @ Vgs12.5nC @ 10V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds200pF @ 25V
FET Feature-
Power Dissipation (Max)25W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO251-3
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
