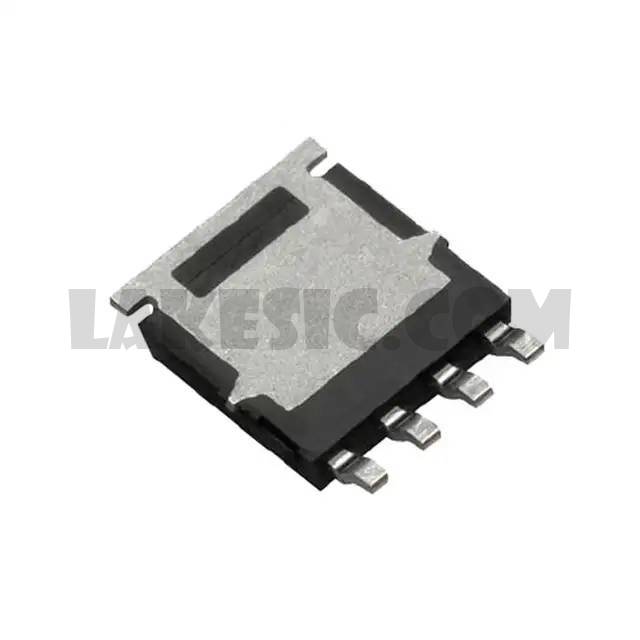

SQJ481EP-T1_GE3


SQJ481EP-T1_GE3

Part NumberSQJ481EP-T1_GE3

Manufacturer

Description

Datasheet

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SQJ481EP-T1_GE3 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package3000
ManufacturerVishay Siliconix
SeriesAutomotive, AEC-Q101, TrenchFET®
PackagingTape & Reel (TR)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)80V
Current - Continuous Drain (Id) @ 25°C16A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs80mOhm @ 10A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs50nC @ 10V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2000pF @ 25V
FET Feature-
Power Dissipation (Max)45W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerPAK® SO-8
Package / Case8-PowerTDFN
