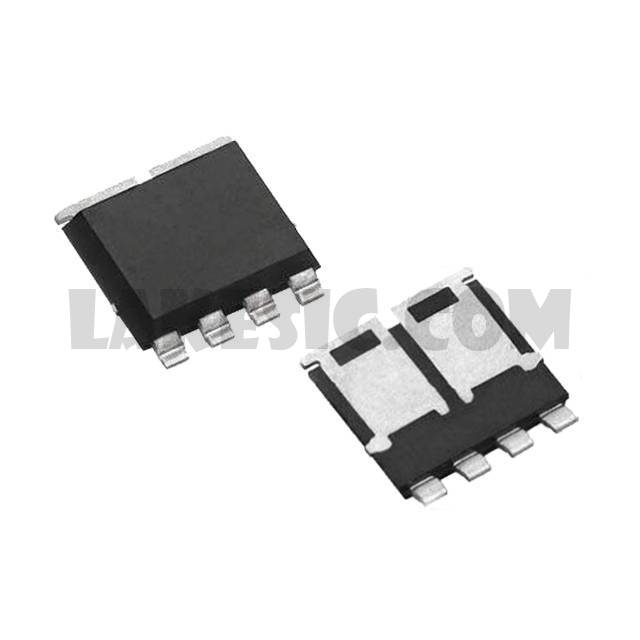

SQJQ960EL-T1_GE3

Part NumberSQJQ960EL-T1_GE3

ManufacturerVishay Siliconix

DescriptionMOSFET 2 N-CH 60V POWERPAK8X8

DatasheetSQJQ960EL

Package / CasePowerPAK® 8 x 8 Dual

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 60V 63A (Tc) 71W Surface Mount PowerPAK® 8 x 8 Dual

To learn about the specification of SQJQ960EL-T1_GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SQJQ960EL-T1_GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SQJQ960EL-T1_GE3.
We are offering SQJQ960EL-T1_GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SQJQ960EL-T1_GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	SQJQ960EL
Standard Package	2000
Manufacturer	Vishay Siliconix
Series	Automotive, AEC-Q101, TrenchFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	63A (Tc)
Rds On (Max) @ Id, Vgs	9mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	24nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1950pF @ 25V
Power - Max	71W
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® 8 x 8 Dual
Supplier Device Package	PowerPAK® 8 x 8 Dual
