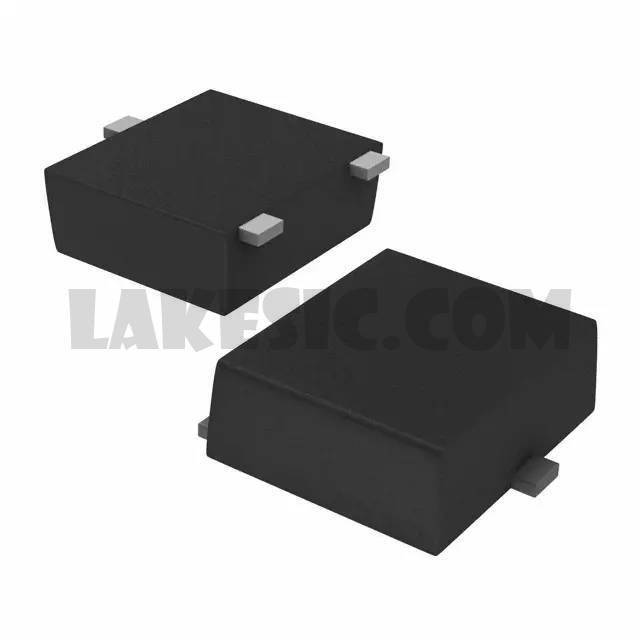

SSM3K2615TU,LF

SSM3K2615TU,LF

Part NumberSSM3K2615TU,LF

ManufacturerToshiba Semiconductor and Storage

DescriptionX34 SMALL LOW ON RESISTANCE NCH

DatasheetSSM3K2615TU

Package / Case3-SMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 2A (Ta) 800mW (Ta) Surface Mount UFM

To learn about the specification of SSM3K2615TU,LF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM3K2615TU,LF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM3K2615TU,LF.
We are offering SSM3K2615TU,LF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM3K2615TU,LF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SSM3K2615TU
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	π-MOSV
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	3.3V, 10V
Rds On (Max) @ Id, Vgs	300mOhm @ 1A, 10V
Vgs(th) (Max) @ Id	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	6nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	150pF @ 10V
FET Feature	-
Power Dissipation (Max)	800mW (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	UFM
Package / Case	3-SMD, Flat Leads
